Concrete Slab Detail CAD Drawing with Waterproofing and Insulation

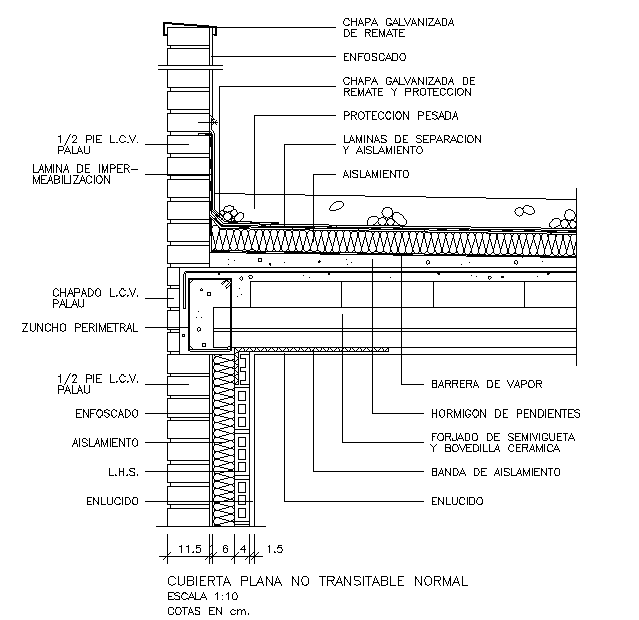

This Concrete Slab Detail CAD Drawing presents a comprehensive structural section showing layered roof and floor slab construction with waterproofing and insulation systems. The drawing illustrates a reinforced concrete slab, a slope concrete layer, a vapor barrier, thermal insulation, separation membranes, and a protective topping. It also includes peripheral beam detail, wall connection, plaster finish, and galvanized sheet flashing for edge protection. All construction layers, material thicknesses, and finishing elements are clearly marked, making this DWG file suitable for residential, commercial, and institutional building projects. The file also provides accurate dimensional annotations, scale references, and material specifications for professional execution.
