Security Gates Design DWG with Steel I-Beams and Gate Layout

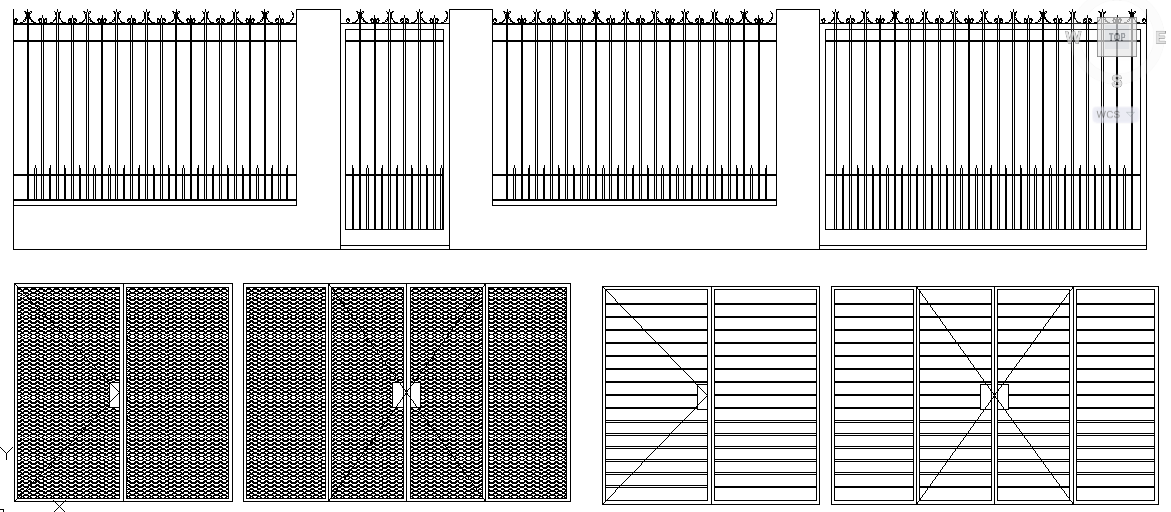

This Security Gates DWG file provides a detailed architectural and structural layout for security fences and gates. The design includes main entry gates, pedestrian gates, and extended steel fencing panels, all accurately dimensioned for practical implementation. The drawing highlights steel I-beams that provide reinforcement, ensuring high durability and resistance to bending moments, which are critical for long-lasting structural stability. Each gate panel features precise spacing, height, and alignment details, allowing architects and engineers to plan both aesthetics and functional security efficiently.
