Tank Design DWG with Manhole, Nipples, and Pivoting Lid Layout

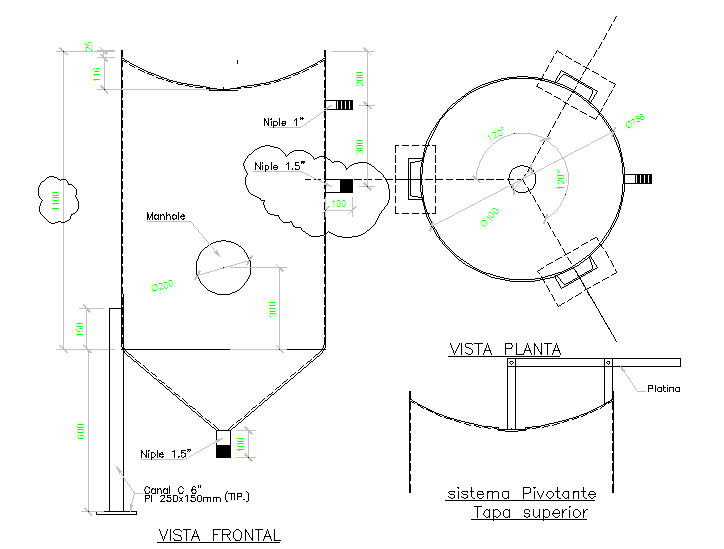

This Tank Design DWG file provides a complete technical drawing for cylindrical tanks with conical bottoms, manhole access, and pivoting top lids. The design includes detailed placement of 1” and 1.5” nipples, inlet and outlet channels, and structural reinforcements. All dimensions, including tank height, diameter, and conical slope, are precisely indicated to ensure proper fabrication and installation. Ideal for industrial, commercial, or agricultural applications, this DWG file allows engineers and designers to plan accurate tank installations. The pivoting lid system ensures safe access for maintenance, while the manhole opening provides additional convenience for inspections
