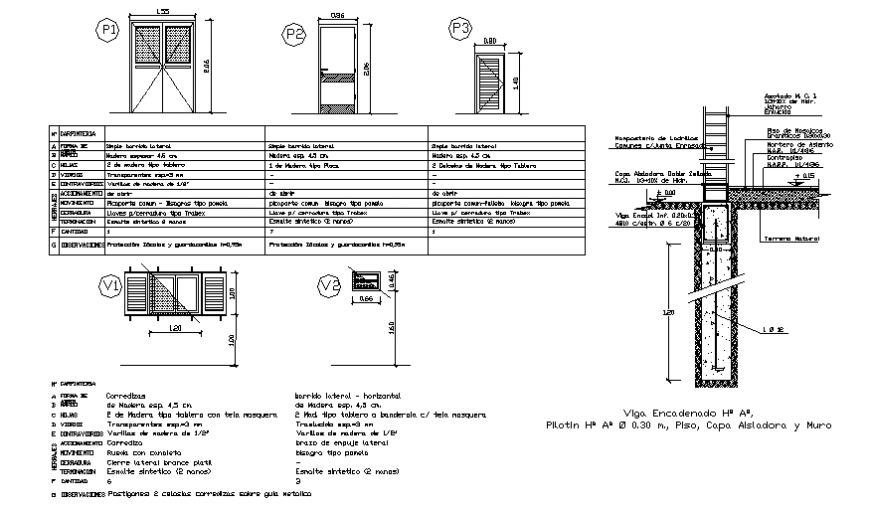

Single and double door elevation and installation details dwg file


Description

Single and double door elevation and installation details that includes a detailed view of wires and fences, galvanized mesh, clamps galv, aluminum couplings, amarres galv, rh place 1 into the spot and 2 in the corners, pe as reinforcement in straight sections, technical specifications, model selection, symbology details, dimensions details, joints details and much more of door installation details.



Eiz Luna
New-Zealand
File Type: DWG ID: 113439
