Club House Building Section Layout with Structural Details in AutoCAD

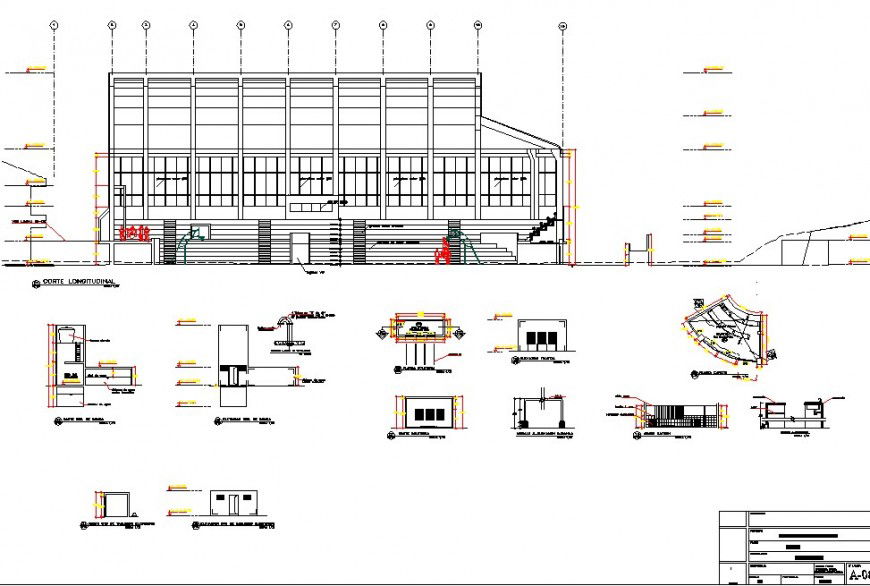

This AutoCAD drawing presents the architectural section layout of a clubhouse building with detailed structural and design components. The drawing includes a longitudinal section view of the building that clearly illustrates the structural frame, floor levels, staircase access, and entrance platform arrangement. The section view shows the elevation of the clubhouse façade with window alignments, column spacing, and roof structure configuration. Centre line references, grid line layouts, and dimension annotations are included to define the structural positioning and building alignment. The drawing also presents front elevation information combined with sectional representation to explain the internal structure of the clubhouse building.
