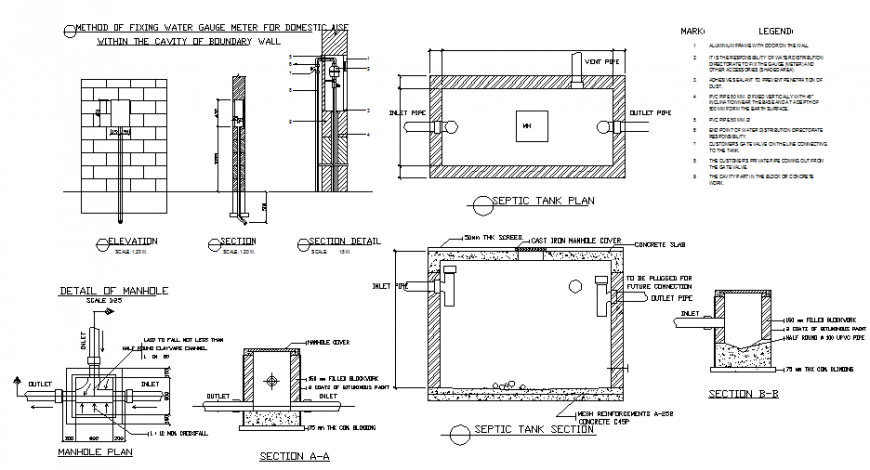

Septic tank elevation, section and structure details dwg file


Description

Septic tank elevation, section and structure details that includes a detailed view of method of fixing water gauge meter for domestic aise withing the cavity of boundry wall, septic tank plan details, elevation and all sided sectional details, dimensions details, manhole plan details, water depth detail, memory of material details, structure detail and much more of tank details.




File Type: DWG File ID: 113526

Uploaded by:


Eiz Luna
New-Zealand
