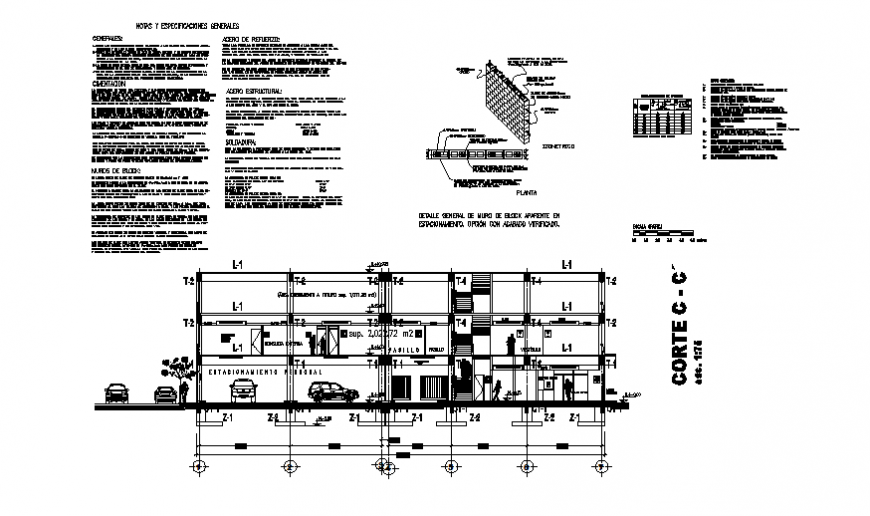

Single family house back constructive sectional details dwg file


Description

Single family house back constructive sectional details that includes a detailed view of flooring view, doors and windows view, staircase view, balcony view, wall design, dimensions, roof or terrace view, car parking view with wall construction, memory of materials, footings details, column view, beam construction, covers closure type, soil  burried wall closure , exterior solera, holes, interior partition, granite veneer of the country with steel supports, halfeneisen type, Brick partition, plaster plastering, Concrete wall  and much more of section details.



Eiz Luna
New-Zealand
File Type: DWG ID: 113559
