Acoustic Wall Section Detail with Roof Slab and Foundation Layout

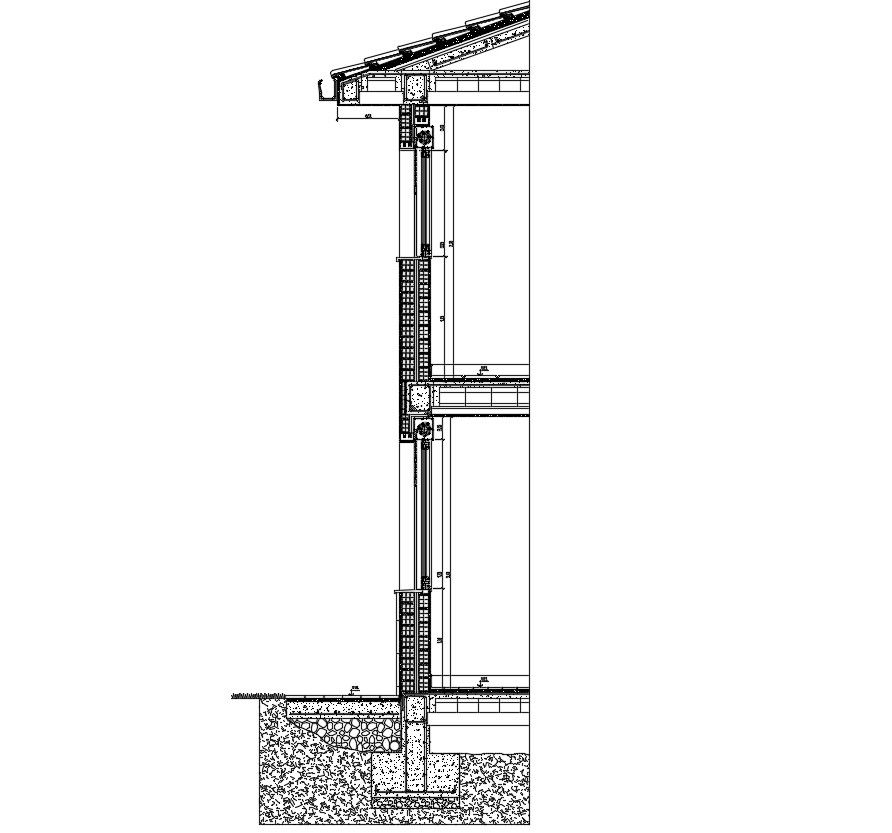

This acoustic wall section detail AutoCAD DWG drawing presents a complete vertical construction detail prepared for building design and execution reference. The drawing clearly illustrates the typical wall section from the foundation level up to the roof structure. It includes detailed RCC foundation footing, wall base connection, and slab junctions with accurate level markings. The wall assembly shows layered construction suitable for acoustic performance, including structural wall thickness, insulation zones, and finishing layers. Roof structure details at ceiling level are clearly defined, showing roofing slope, beam support, slab thickness, and connection points. Dimension lines and hidden line details are provided to support precise technical understanding.
