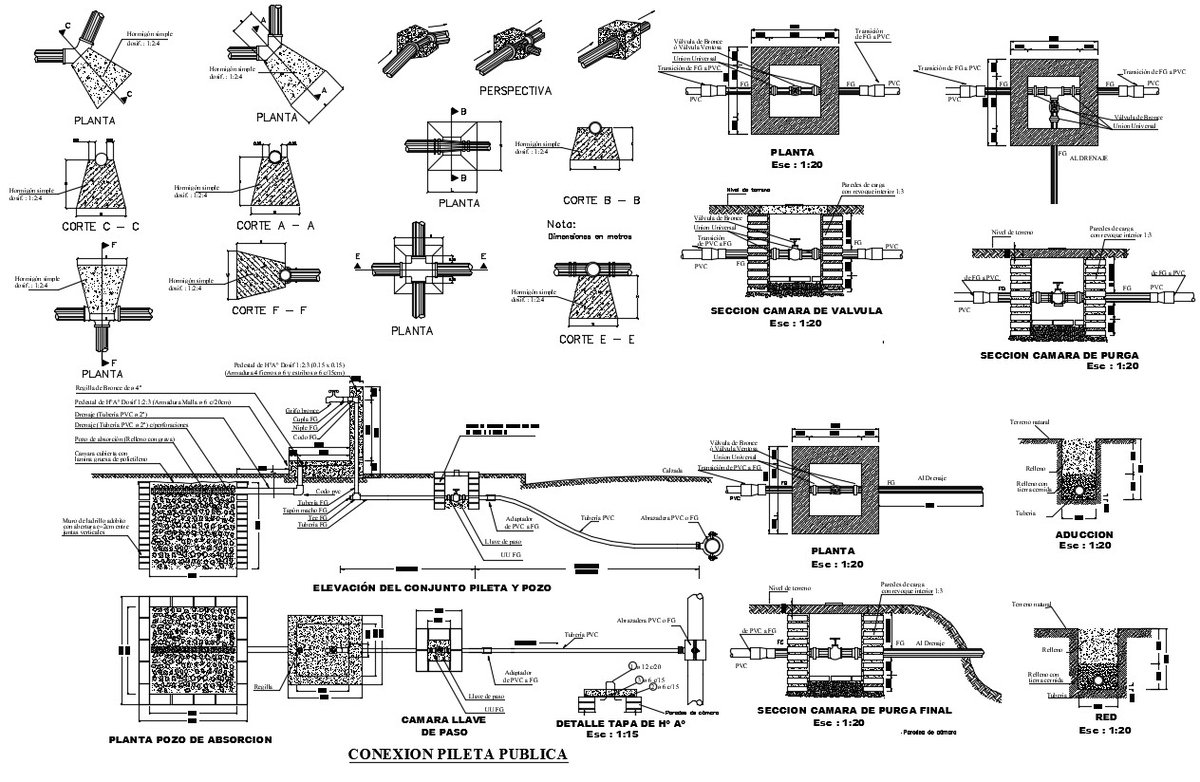

Cement Water Tank CAD Drawing with Plumbing Valves and Pipe Details

This cement water tank CAD drawing presents a complete two-dimensional design of a water storage and distribution system used in residential and utility infrastructure projects. The AutoCAD drawing includes detailed plan views, elevations, and sectional drawings of the cement water tank, clearly showing tank layout, internal capacity zoning, and construction geometry. Plumbing components such as PVC and FG pipe connections, inlet and outlet lines, valve chambers, purge chambers, and inspection access points are accurately detailed. All major dimensions are provided in meters, including tank depth, wall thickness, base slab size, and pipe alignment spacing for proper execution on site.
