Column Footing Design Drawing with RCC Foundation Details Plan Section

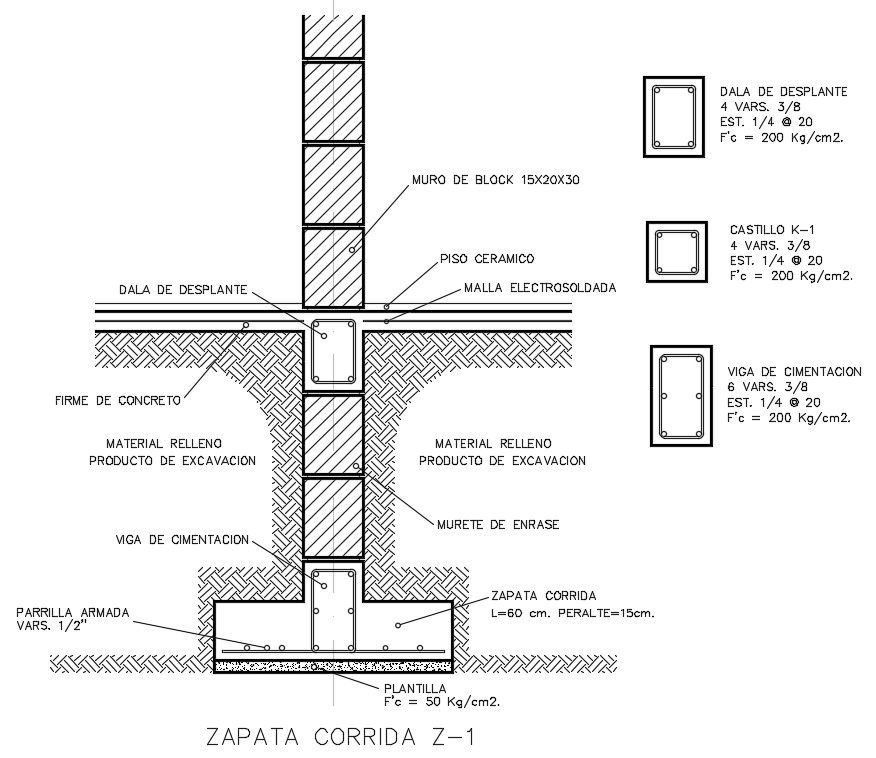

This column footing design drawing presents a detailed AutoCAD sectional view of RCC foundation construction with clear dimensional and material specifications. The drawing illustrates a continuous footing layout showing column alignment, footing width of 60 cm, and footing thickness with a 15 cm pedestal as indicated. It includes reinforced concrete elements such as the foundation beam, footing slab, and vertical column starter bars. Masonry block wall details of size 15×20×30 cm are shown above the foundation level, along with floor buildup layers including ceramic flooring, welded wire mesh, and concrete base. Material annotations specify concrete strength values such as f’c 200 kg per cm2 for structural members and f’c 50 kg per cm2 for lean concrete below the footing.
