Isolated RCC Column Footing Drawing with Reinforcement Details

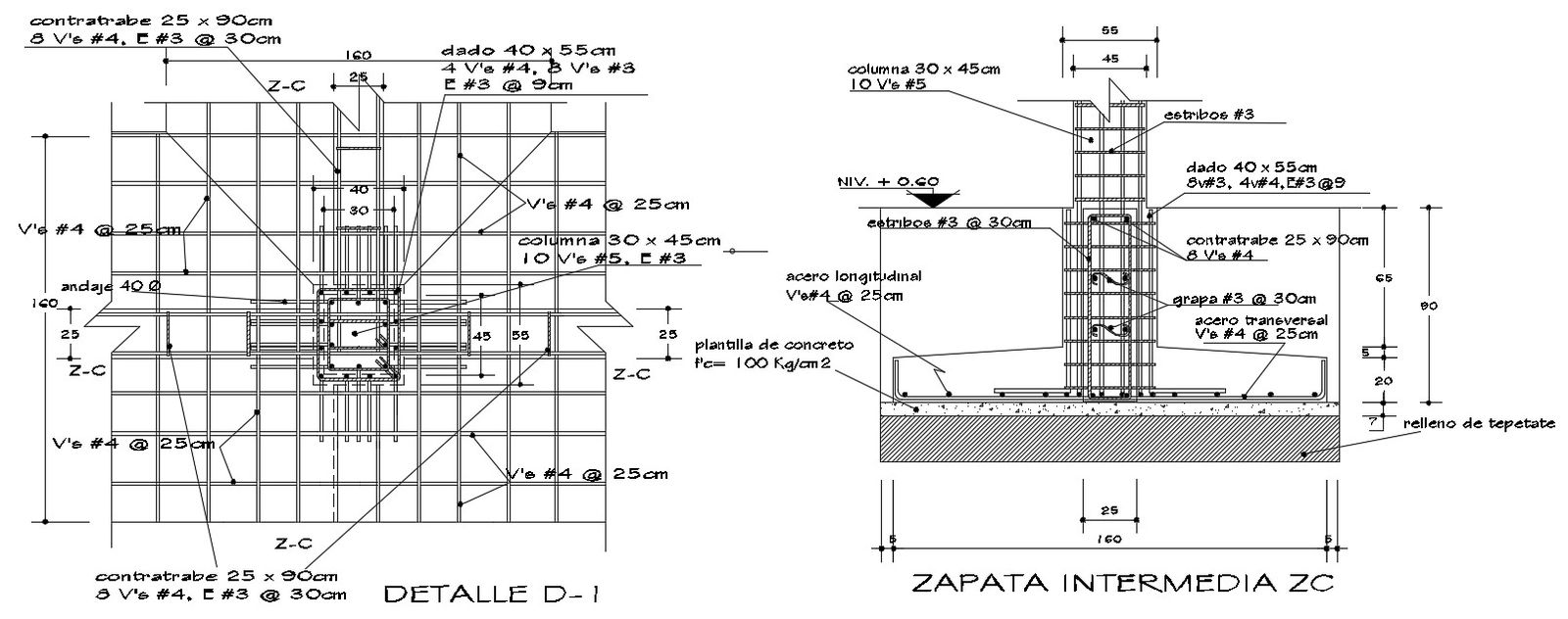

This isolated RCC column footing drawing provides a detailed AutoCAD representation of a reinforced concrete footing used for individual column support. The drawing includes plan and sectional views showing footing dimensions, reinforcement layout, and column connection details. Clear measurements such as footing width of 160 cm, footing thickness, and pedestal size of 40 × 55 cm, are indicated for accurate construction reference. Reinforcement details include main bars, transverse bars, stirrups, and anchorage lengths with spacing such as bars at 25 cm and 30 cm centers. The column size of 30 × 45 cm is clearly marked along with longitudinal reinforcement and tie spacing. A lean concrete layer with specified concrete strength is shown below the footing to support proper load distribution.
