Curtain Wall Section with RCC Structure and Masonry Details AutoCAD

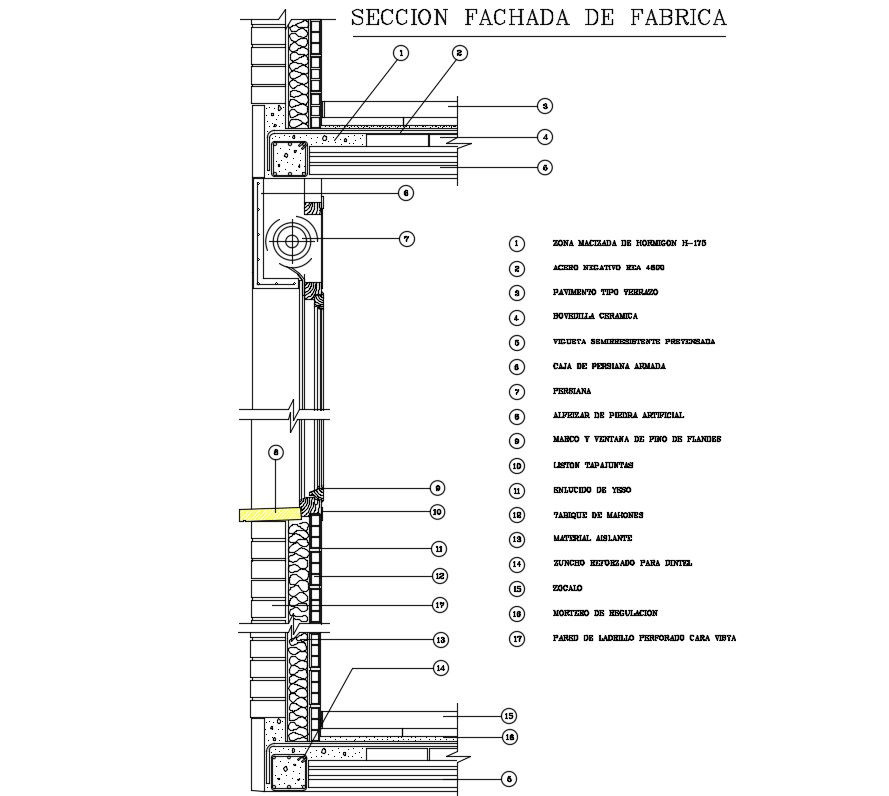

This curtain wall section AutoCAD drawing provides a comprehensive construction-level detail of a reinforced concrete structure combined with masonry wall components. The section illustrates the façade wall assembly from foundation to floor slab level, showing RCC structural elements, concrete masonry units, and layered wall buildup. Key components such as reinforced concrete zones, masonry infill, insulation layers, and finishing materials are clearly identified. Dimensional references help define wall thickness, slab alignment, and junctions between structural and non-structural elements, making the drawing suitable for façade and wall coordination in multi-storey buildings.
