Retaining Wall Construction Drawing With Toe Heel Slab Details

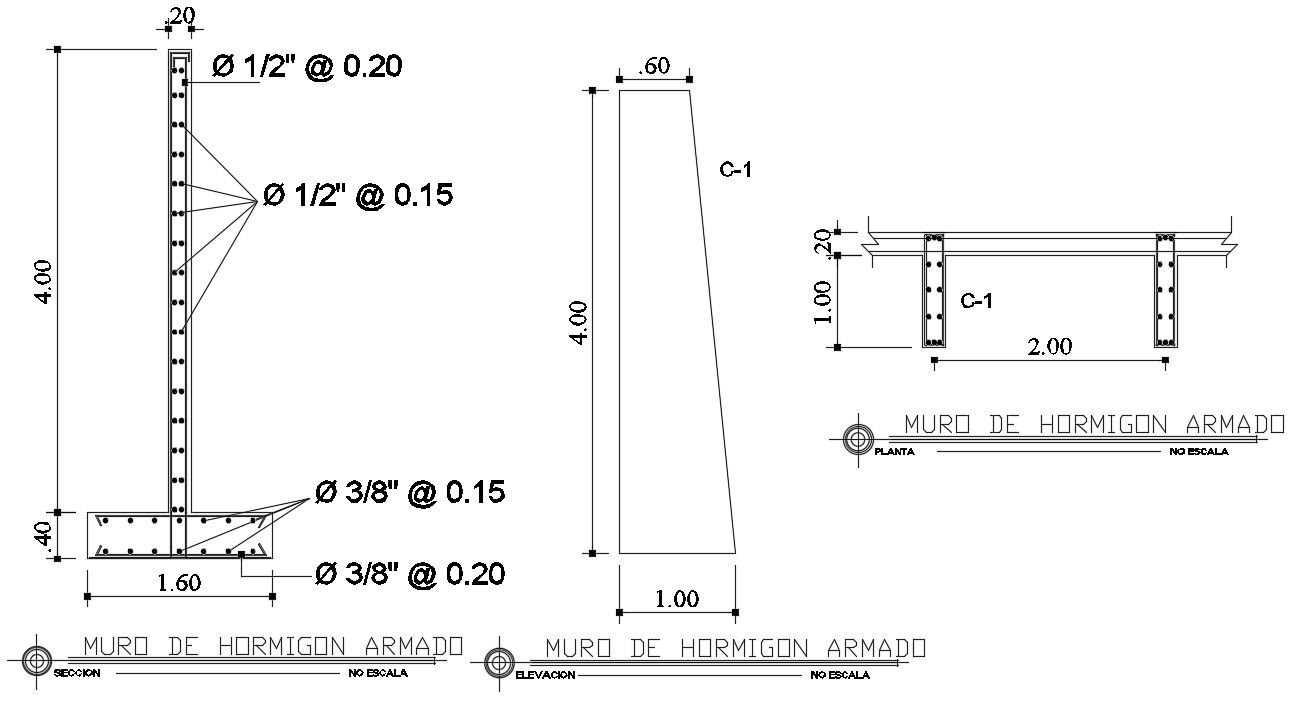

This retaining wall construction drawing offers a precise CAD plan designed for architects, civil engineers, and builders for professional structural planning. The drawing includes detailed toe and heel slab measurements, typically 300 mm thick for the heel and 250 mm for the toe, along with retaining wall stem dimensions and proper alignment for structural stability. Reinforcement placement, curtailment steel bar positions, and block detailing are accurately illustrated to ensure precise construction and load management. This drawing provides essential structural details, including wall height, base width, and slope considerations for retaining walls in both residential and commercial projects.

The AutoCAD retaining wall drawing is ideal for professionals requiring accurate construction documentation and planning support. It facilitates proper coordination with foundation design, site excavation, and other structural elements. With exact toe and heel slab dimensions, stem thickness, and steel reinforcement layout, this CAD drawing ensures adherence to safety and design standards. The retaining wall construction drawing can be used for visualization, project estimation, and execution planning, making it a must-have resource for engineers, architects, and builders focused on precision and structural integrity.
