Small hotel floor layout plan detail drawing in dwg AutoCAD file.


Description

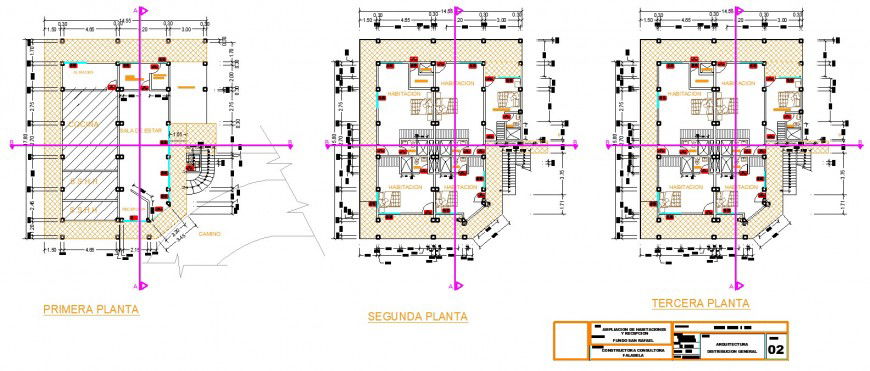

Small hotel floor layout plan detail drawing in dwg AutoCAD file. This file includes the detail top view of the ground floor with reception area, kitchen area, stairs detail, and with detail dimensions. First floor and second floor with five bedroom furniture layout, lobby detail, and detail dimensions.




File Type: DWG File ID: 116000
