Detail of roof truss 2d view CAD structural block layout autocad file
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

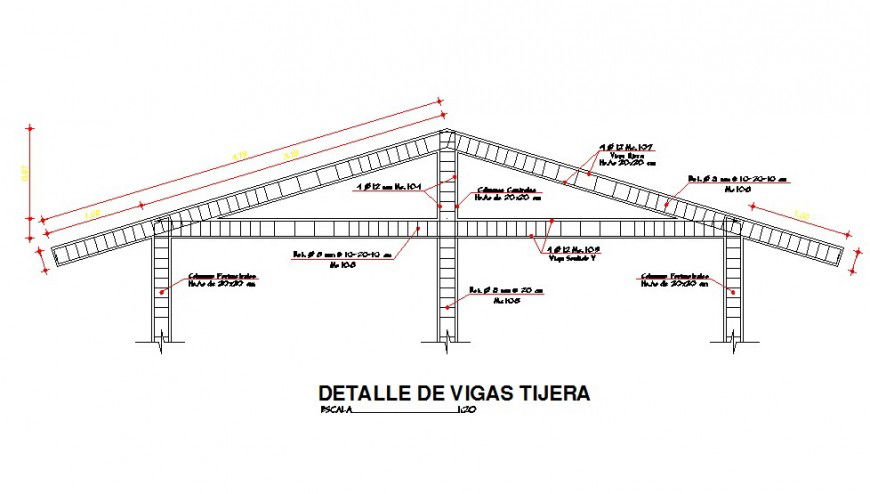

Detail of roof truss 2d view CAD structural block layout autocad file, front elevation detail, struts detail, principal rafter detail, namings detail, riser and pitch detail, main and sag tie detail, cut out detail, scale 1:20 detai, dimension detail, purlin detail, welded and bolted joints and connection detail, etc.
File Type:
DWG
File Size:
1.6 MB
Category::
Construction
Sub Category::
Construction Detail Drawings
type:
Gold
Tags
#roof#RCC structure#column
