Sports ground construction details with concrete structure dwg file

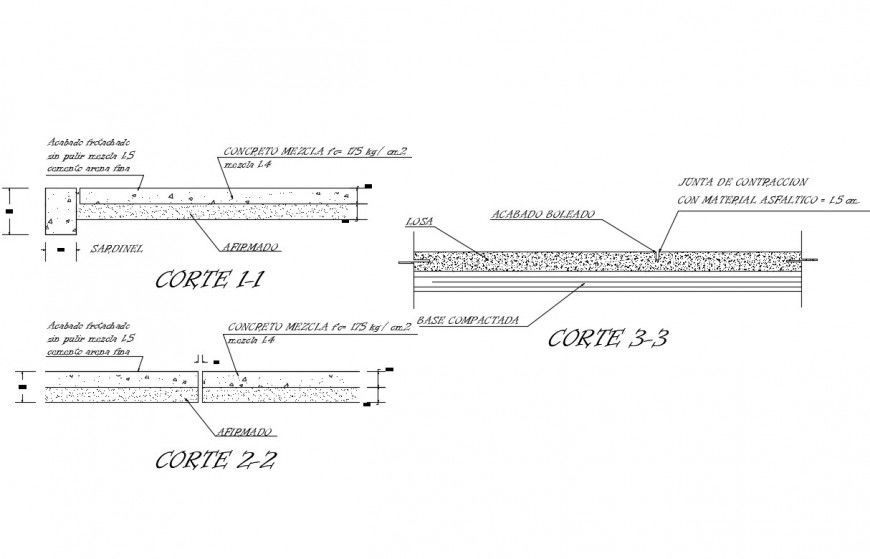

Sports ground construction details with concrete structure that includes a detailed view of multi-sport floor slab, plant building detail of slab, contraction board, with asphaltic material = 1.5 cm., concrete, concrete mix concrete specifications, expansion joint covered with tar and sand affirmed, basketball, volley, football, existing local glass of milk by collapsing, concrete cyclopean, containment wall, existing tapial, concrete ciclopeo, armed concrete, coatings, columns: 4cm, foundation beam: 5cm, filter filling, material selected for filter and much more of sports ground details.
