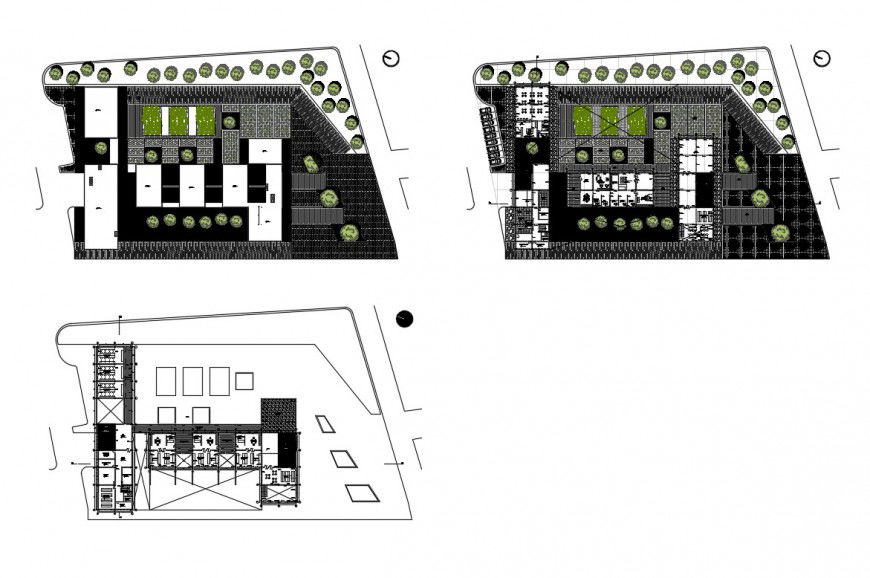

Ground, first and second floor plan details of investigation center building dwg file


Description

Ground, first and second floor plan details of investigation center building that includes a detailed view of reception area, waiting area,  cabin, bottom false ceiling, computer lab, bottom of grid ceiling, counselling room and library, conference room, manager cabin, meeting room, cleaning department, departmental office, smoking area, head offices, accountant rooms, pantry, kitchen, dining area, server room, meeting room, pantry and much more of office




File Type: DWG File ID: 117554
