Apartment House Elevation and Section Drawing with 2BHK Layout

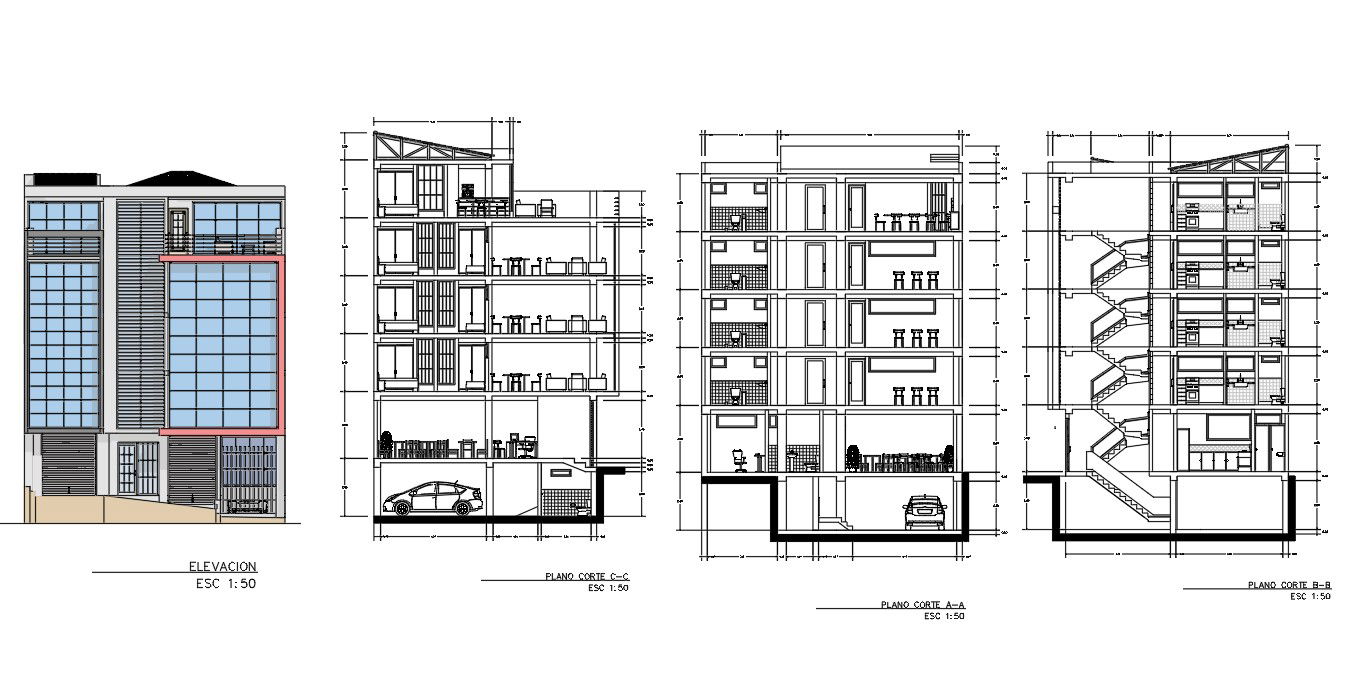

This AutoCAD DWG file presents a complete apartment house elevation and section drawing with detailed architectural and space planning information. The drawing includes front elevation, longitudinal section, transverse section, and internal layout for a five-floor residential apartment building. Each floor features a 2BHK unit with a living room size of approximately 4.0x3.8m, bedrooms of 3.4x3.2m, a kitchen of 2.8x2.6m, and toilets of 1.5x2.2m. Floor-to-floor height of 3000mm, slab thickness of 125mm, and beam size of 230x450mm are clearly indicated. Parking layout, staircase core, lift shaft, balcony projections, and window alignment are also shown for functional circulation. The apartment section and elevation drawing also include furniture layout, wall thickness of 230mm and 115mm, and structural grid alignment for construction accuracy. Service ducts, ventilation shafts, and utility spaces are marked for proper building coordination.
