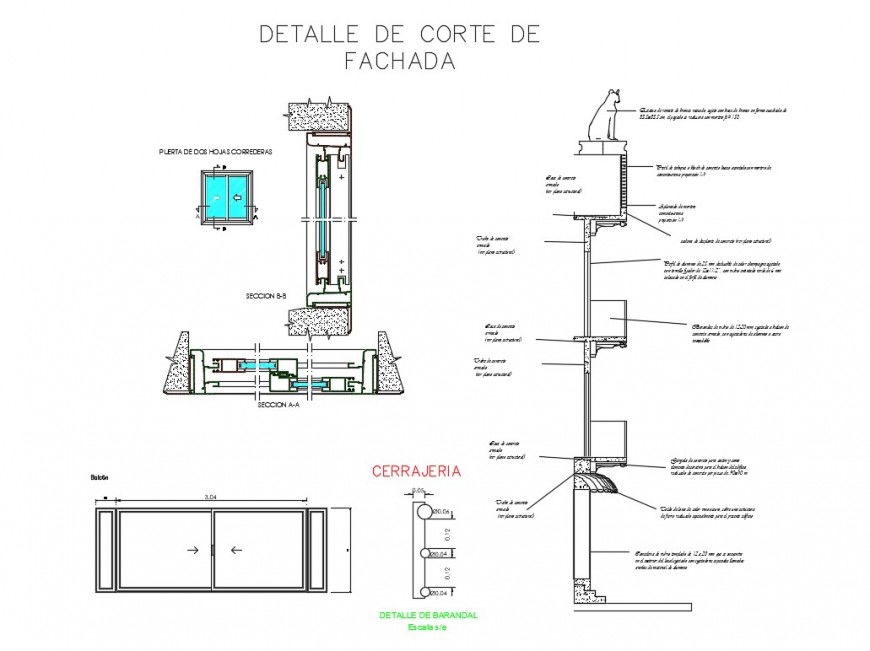

Facade constructive section details of house building dwg file


Description

Facade constructive section details of house building that includes a detailed view of flooring view, wall construction, memory of materials, footings details, column view, beam construction, covers closure type, soil  burried wall closure , exterior solera, holes, interior partition, granite veneer of the country with steel supports, halfeneisen type, Brick partition, plaster plastering, Concrete wall  and much more of section details.




File Type: DWG File ID: 118169

Uploaded by:


Presenting the broken author avatar :D Eiz Luna
New-Zealand
