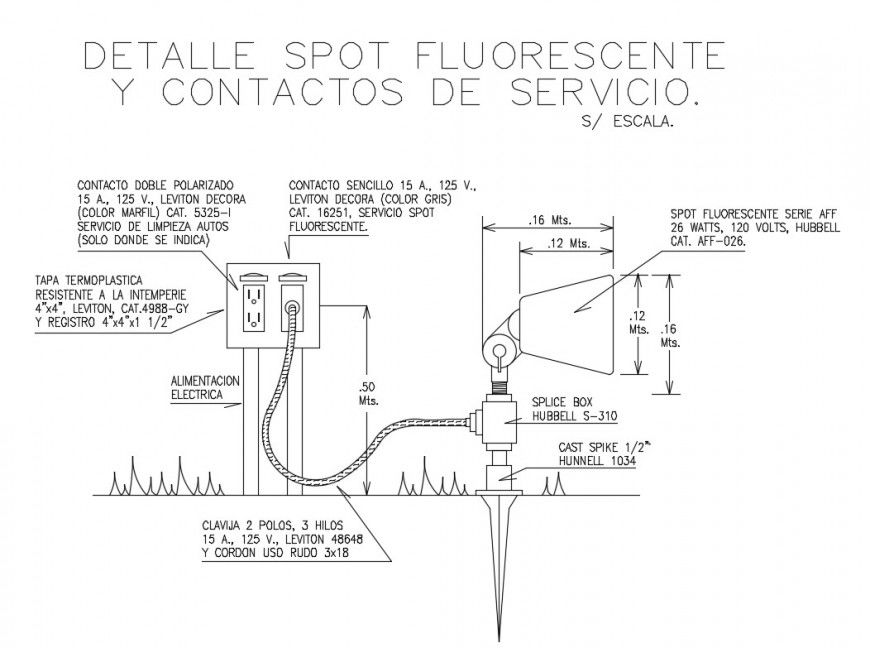

Outdoor fluorescent spot light electrical installation details dwg file


Description

Outdoor fluorescent spot light electrical installation details that inclides a detailed view of electrical installation project site, existing unilineal diagram, al-01 from tgauxg existing to tgauxa, electrical connection, s / e electrical existing, general feeder, description of symbology, sub-electric station, concrete post h: 11 (m), electric camera 700x700 (mm), thermomagnetic switch, transient suppressor, electrical lighting board and much more of electrical installation details.




File Type: DWG File ID: 118212
