Wash Basin Plumbing Detail CAD Drawing with 850mm Height Plan

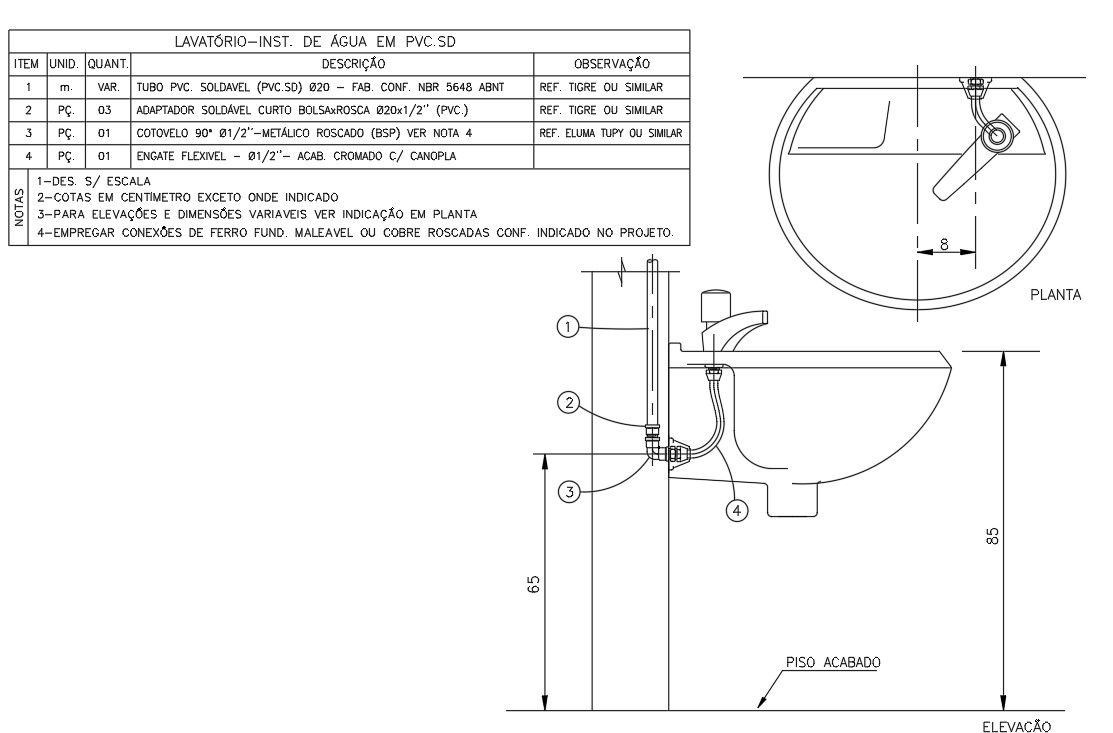

This Wash Basin Plumbing Detail CAD Drawing with 850mm Height provides a complete technical layout for bathroom and washroom water supply installations. The drawing includes plan and elevation views of the wash basin, PVC water supply pipe arrangement, flexible connector, angle valve, adaptor fittings, and wall-mounted plumbing connections. It shows accurate construction measurements such as 850mm basin installation height, 650mm pipe length from floor level, Ø20mm PVC pipe size, and 1/2 inch threaded joint connections. All components are clearly labeled with material specifications, reference standards, and installation notes for professional execution.
