Kitchen Sinks Drainage Details CAD Drawing with 90mm Heights

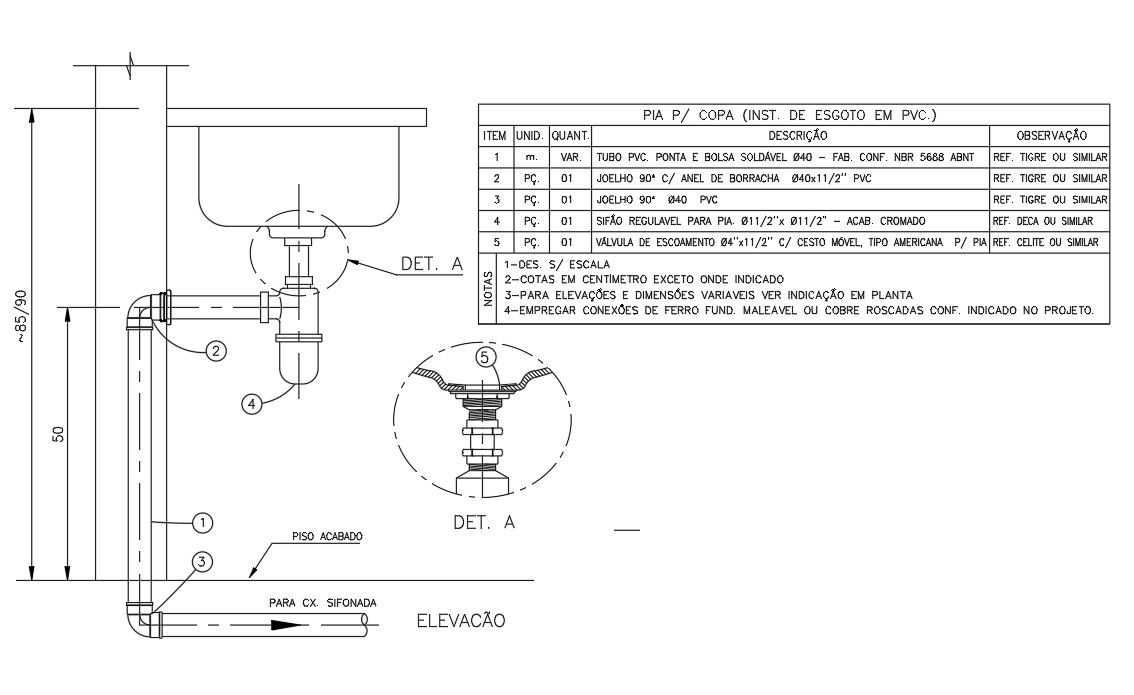

This Kitchen Sink Drainage Detail CAD Drawing with 90mm Height provides a complete technical layout for kitchen wastewater and plumbing installations. The drawing includes elevation and detailed views of the sink outlet, PVC drainage pipe, siphon trap, elbow joints, flexible connector, and floor connection to the main drainage line. It shows accurate construction measurements such as 85mm to 90mm installation height, 50cm vertical pipe length, Ø40mm PVC pipe size, and standard 1½ inch threaded fittings. All components are clearly labeled with material specifications, reference standards, and installation notes for professional construction use.
