Zig Zag Staircase Detail CAD Drawing with Section and Elevation

Ratings & Reviews
Be the first to share your experience with this product. Your review helps others make better decisions!
Description

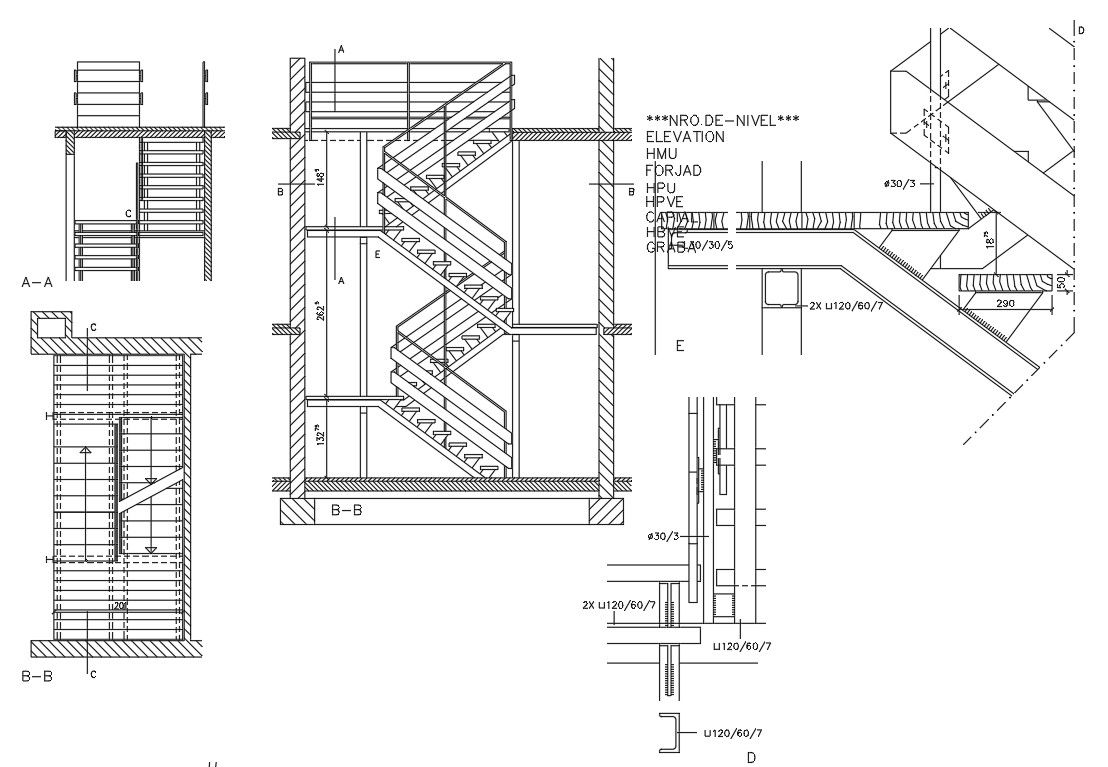

This Zig Zag Staircase Detail CAD Drawing with Section and Elevation provides a complete structural and architectural layout for multi-storey building staircases. The drawing includes detailed plan views, sectional cuts, side elevations, landing arrangements, handrail positioning, and step configurations in zigzag form. It shows accurate construction measurements such as standard 160mm riser height, 270mm tread depth, landing width, slab thickness, beam support dimensions, and floor-to-floor height levels. Steel support members, reinforcement placement, and fixing connections are clearly indicated for safe and durable staircase construction. All drawing elements are properly labeled for professional site execution.
File Type:
3d max
File Size:
56 KB
Category::
Mechanical and Machinery
Sub Category::
Elevator Details
type:
Gold
Tags
Uploaded by:
Priyanka
Patel
