Slab Construction Waffle Block DWG Detail with Structural Notes Plan

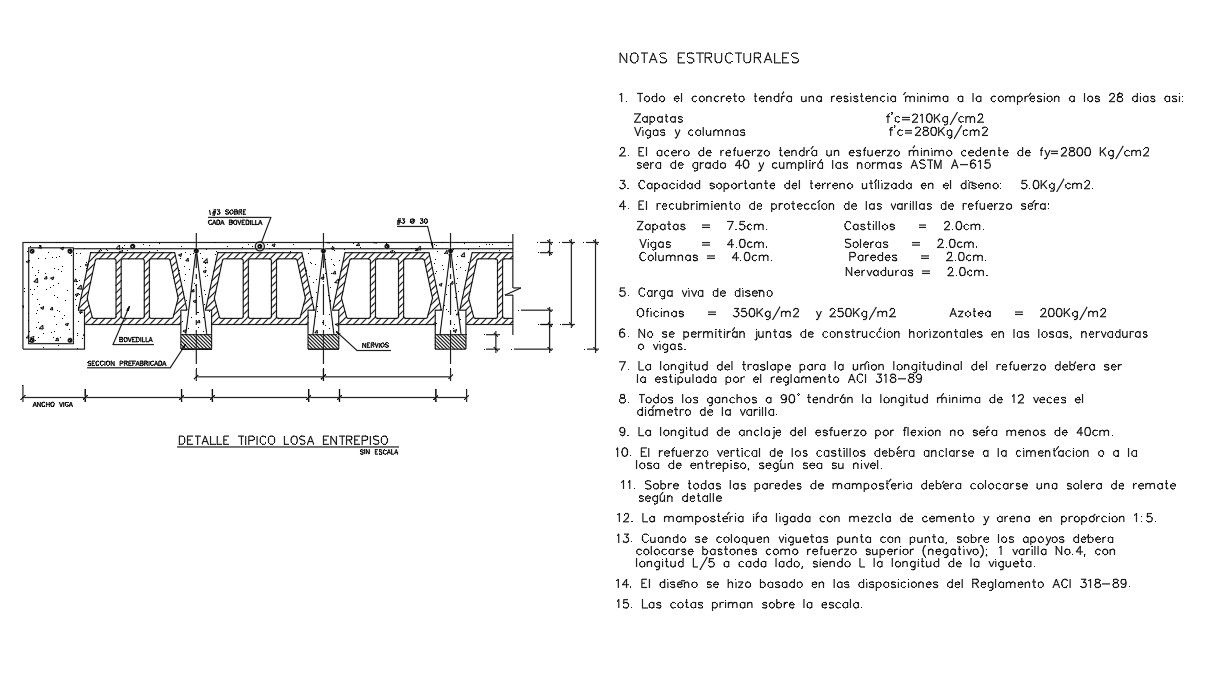

This AutoCAD DWG file presents a detailed slab construction waffle block drawing with complete structural specifications and technical notes. The drawing illustrates a typical inter-floor slab section using prefabricated beams, hollow blocks, and reinforced concrete ribs. It includes clear labeling of viguetas, bovedilla blocks, nervures, and beam spacing with accurate dimensional references. The layout shows load distribution, slab thickness, beam width, and reinforcement positioning. Structural notes specify concrete compressive strength values of 210 kg/cm² and 280 kg/cm², steel reinforcement grade fy 2800 kg/cm², soil bearing capacity of 5.0 kg/cm², and protective cover dimensions for beams, columns, and slabs. Anchorage lengths, hook dimensions, and splice requirements are also included.
