Welding Equipment Detail DWG with Pipe Plate and Joint Sections

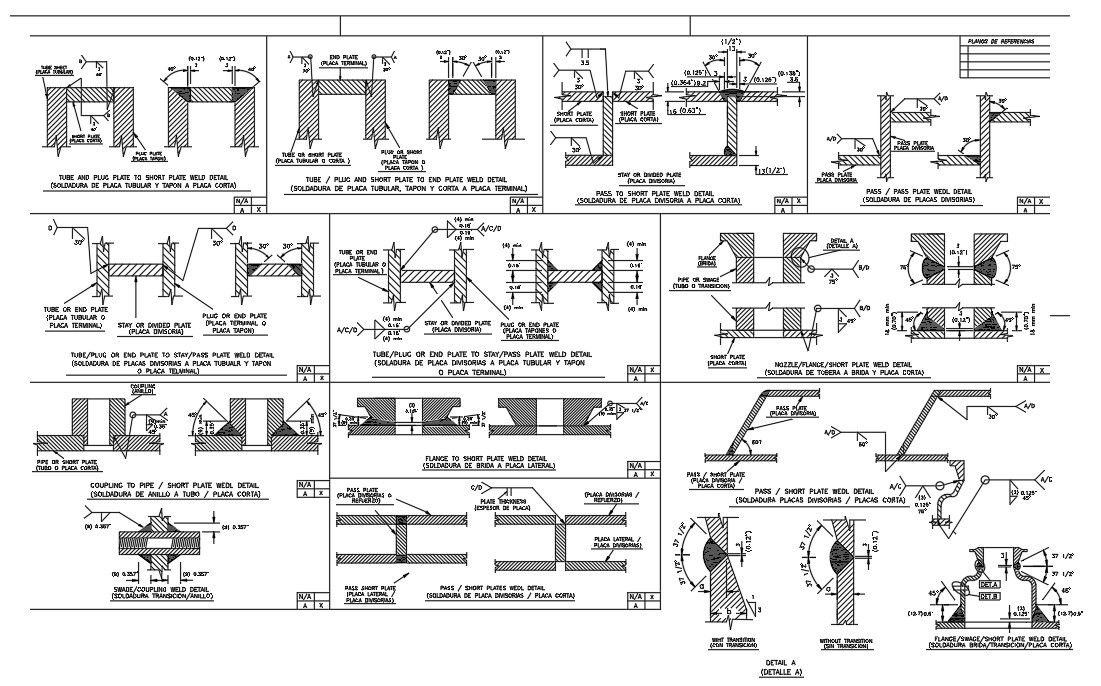

This AutoCAD DWG file presents comprehensive welding equipment details with precise pipe, plate, flange, and joint connection drawings. The file includes multiple sectional views illustrating tube-to-plate welds, end plate joints, plug and pass welds, flange connections, nozzle details, and divider plate assemblies. Each detail is dimensioned accurately with weld sizes, angles, thickness specifications, and alignment references. The drawing set also shows transition joints, coupling connections, and reinforced plate welds used in industrial fabrication and structural steel projects. Clear annotations and standardized symbols support correct interpretation for workshop fabrication and on-site installation.
