Building Section and Layout Plan 45m x 25m Complete CAD File Set

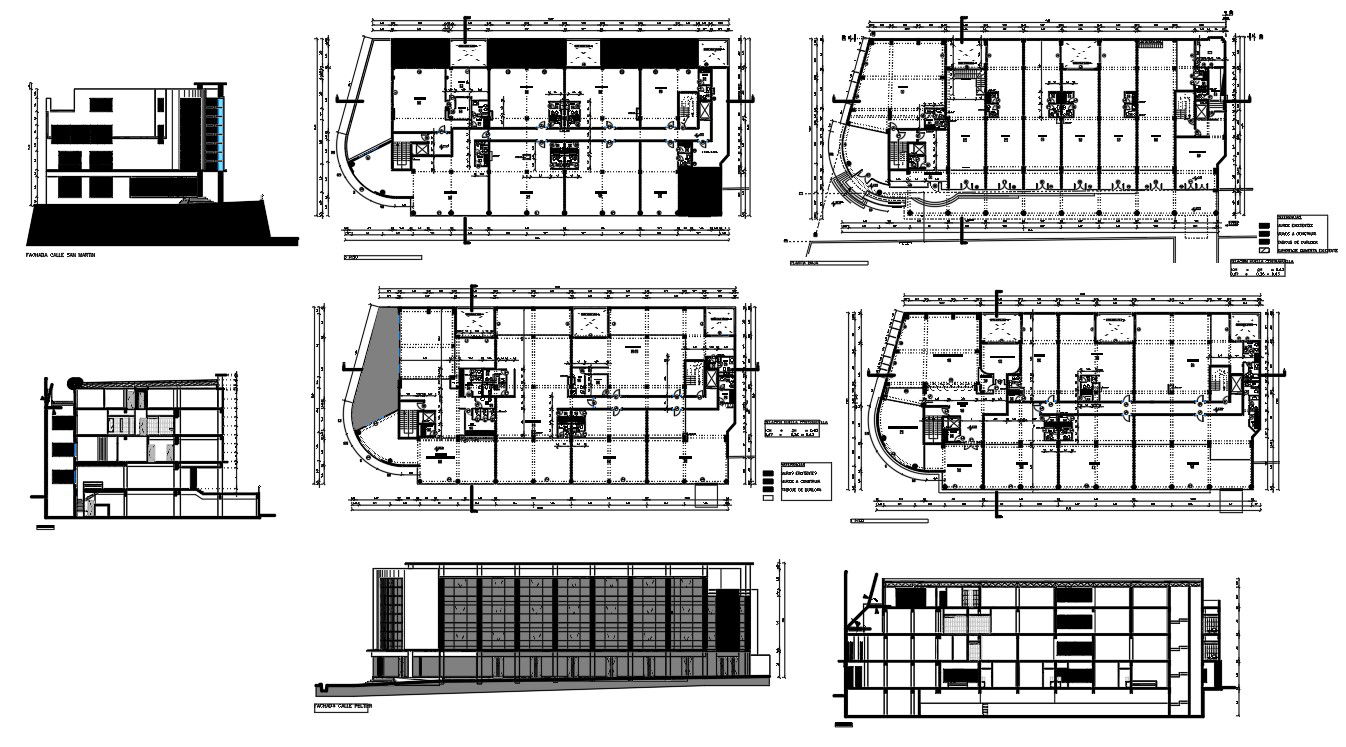

Building Section and Layout Plan 45m x 25m CAD File Set is a professionally detailed AutoCAD drawing package prepared for architectural planning and structural coordination. The project covers a 45m x 25m building footprint and includes comprehensive layout plans, sectional views, and elevation references. The layout drawings clearly define column grid spacing, wall alignment, staircase core service shafts, and circulation flow across multiple levels. Floor plans are dimensioned with accurate structural positioning, slab thickness references, and internal zoning to ensure proper spatial organization and construction clarity.
