Carpentry Wall Foundation Drawing 300mm Masonry Structural Detail Plan

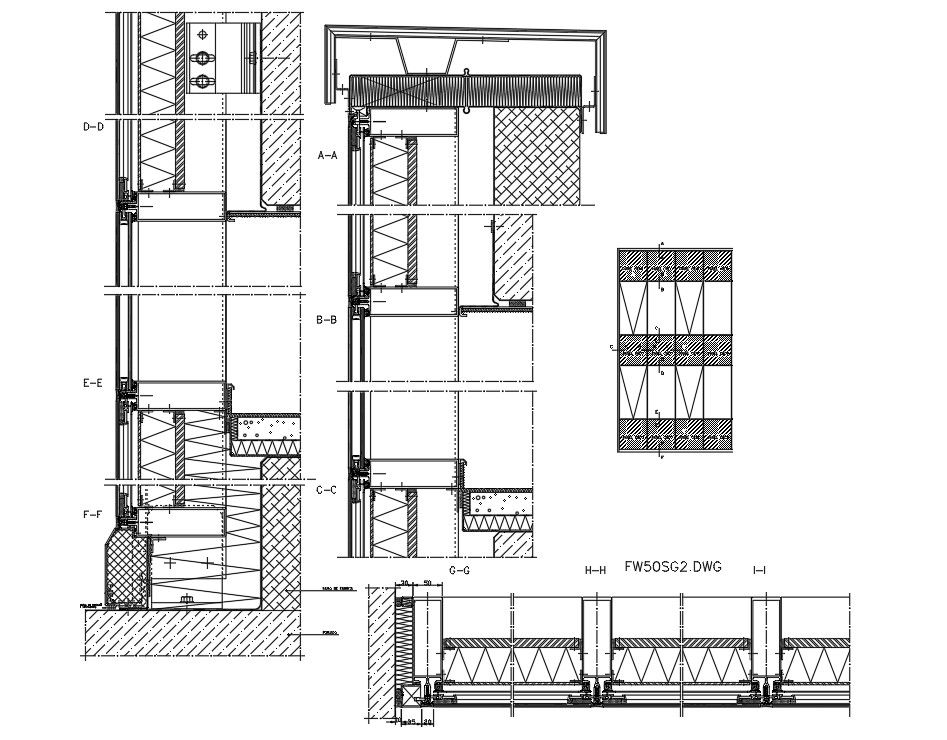

Download Carpentry Wall Foundation Drawing 300mm Masonry Detail designed in AutoCAD DWG format. This technical drawing includes detailed steel panel detail, reinforced masonry wall section, structural connection layout, and foundation wall construction with sectional views such as A A, B B, C C, D D, E E, F F, G G, H H, and I I. The drawing illustrates a 300mm thick masonry wall supported on an RCC footing and foundation base, integrated with steel framing and carpentry panel assembly. It clearly presents structural anchoring, insulation layers, panel fixing arrangement, and load transfer mechanism from the superstructure to the foundation.

This Carpentry Wall Foundation Drawing 300mm Masonry Detail also covers footing dimensions, base slab connection, vertical and horizontal structural joints, and elevation details suitable for architects, civil engineers, interior designers, and builders. The AutoCAD DWG file ensures precise drafting standards, scalable measurements, and editable layers for project customization.
