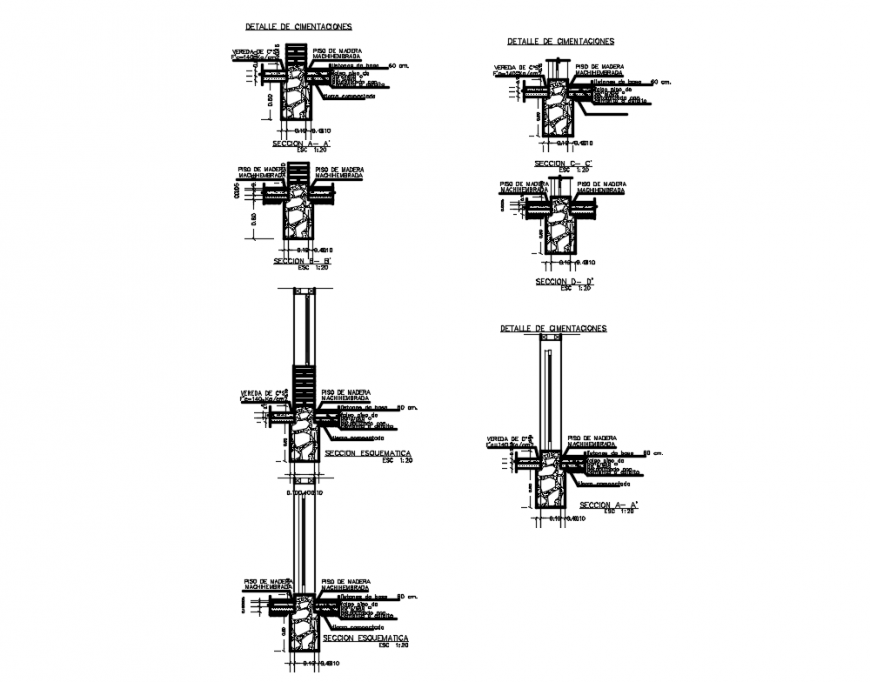

Foundation plan details with wall construction and column of house dwg file


Description

Foundation plan details with wall construction and column of house that includes a detailed view of Reinforced concrete parapet,  Stuffed with  tezontle, average thickness, Stuck with cement-sand mortar prop, Waterproofing based on prefabricated membrane, Wall concrete hollow block smooth finish, based on granitic  acrylic resins, Hollow block wall heavy type of cm, common finish, joined with sand cement mortar with horizontal reinforcement and drowned castles and much more of house construction details.



Eiz Luna
New-Zealand
File Type: DWG ID: 119938
