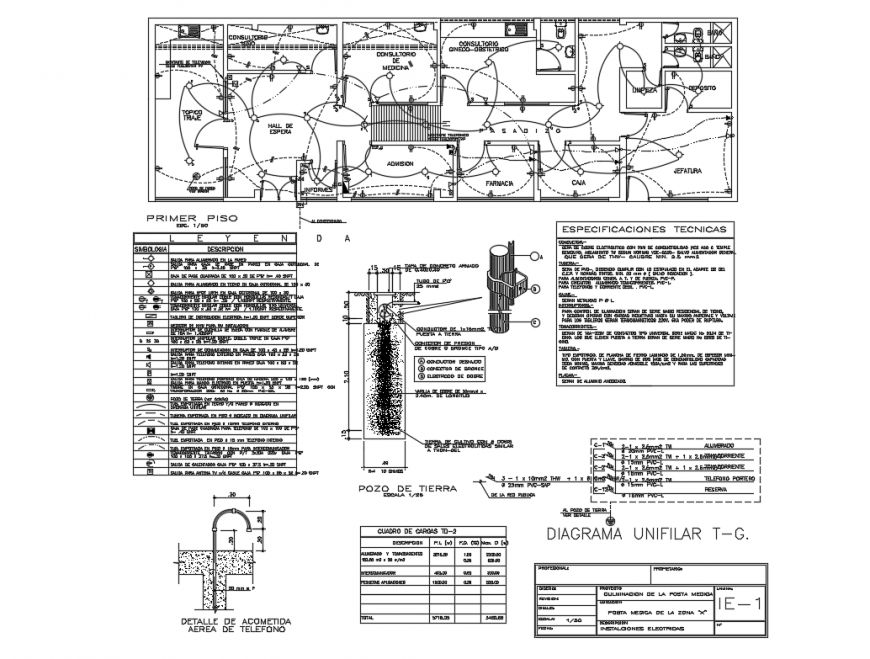

Electrical installation and layout plan details of medical hospital dwg file

Electrical installation and layout plan details of medical hospital exit for lighting on the wall, departure for wall box in box octogonal of, square box of 100 x 30 de fºgº h = .40 snpt, exit for roof lighting in octogonal box of 100 x 30, exit for spot ligth in octogonal box of 100 x 30, double bipolar outlet with round forks / t box, double bipolar outlet with universal type forks, electrical distribution board h = 1.80 snpt superior edge, khw meter for installation, 2x20a blade switch with wire fuse, switch switch in box of 100 x 43 x 28 h = 1.20 snpt and much more of electrical installation details.
