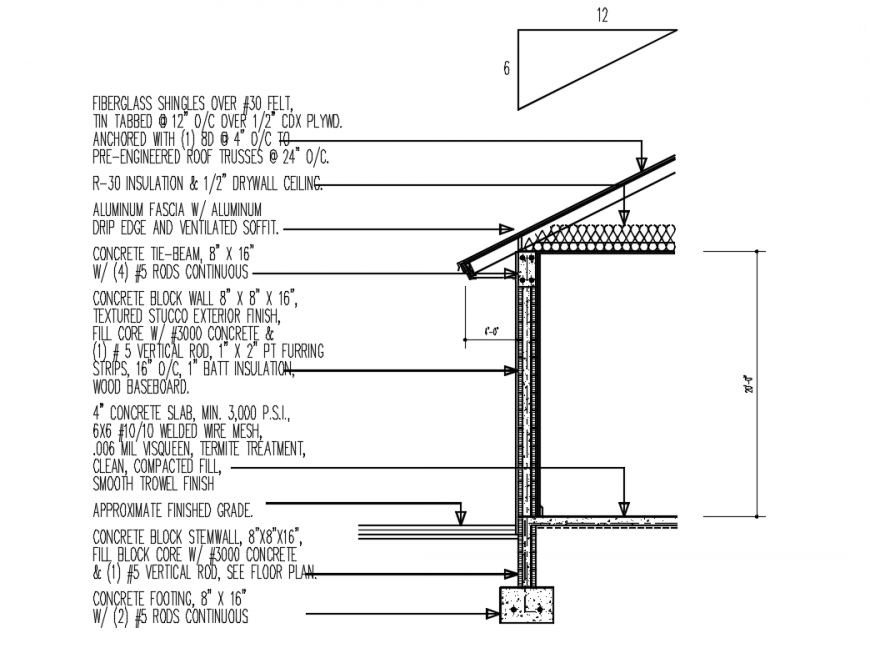

Single level house facade cut sectional constructive details dwg file


Description

Single level house facade cut sectional constructive details that includes a detailed view of flooring view, wall construction, memory of materials, footings details, column view, beam construction, covers closure type, soil  burried wall closure , exterior solera, holes, interior partition, granite veneer of the country with steel supports, halfeneisen type, Brick partition, plaster plastering, Concrete wall  and much more of section details.




File Type: DWG File ID: 120840

Uploaded by:


Eiz Luna
New-Zealand
