Description

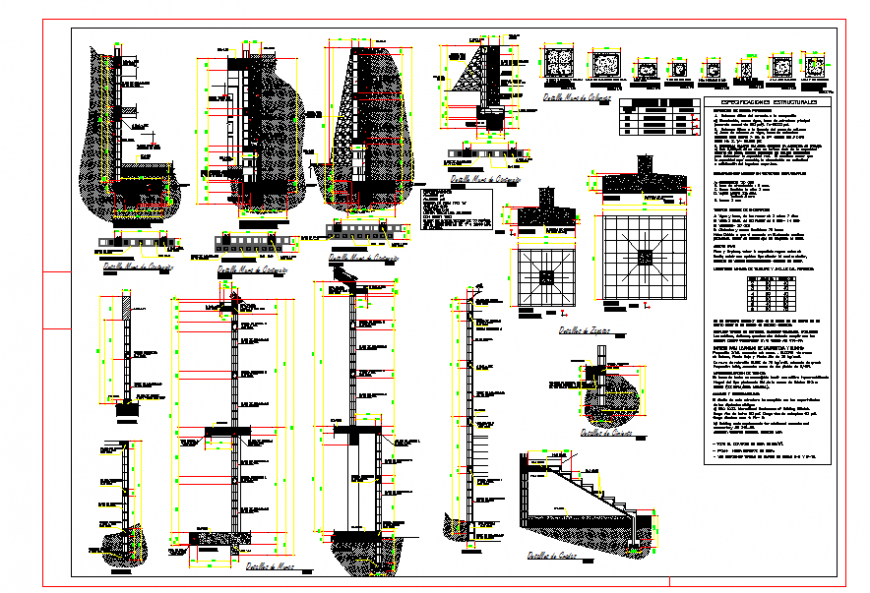

Foundation Construction Section detail
Specifications: f'c = 3000 psi f '= 40000 psi sabieta de pega type "m" anchors 0.30 overlaps 0.40 fill all the holes with grout 1: 3: 2 block of 0.19x0.19x0.39 of 70 kg / cm. construction board from 1 "to 20.00 meters. in curtain.

File Type:

DWG

Category::

Construction

Sub Category::

Reinforced Cement Concrete Details

type:

Gold

File Id:

121086
Profile

Uploaded by:

Eiz Luna
