Details of pre-manufactured cistern water tank constructive plumbing details dwg file


Description

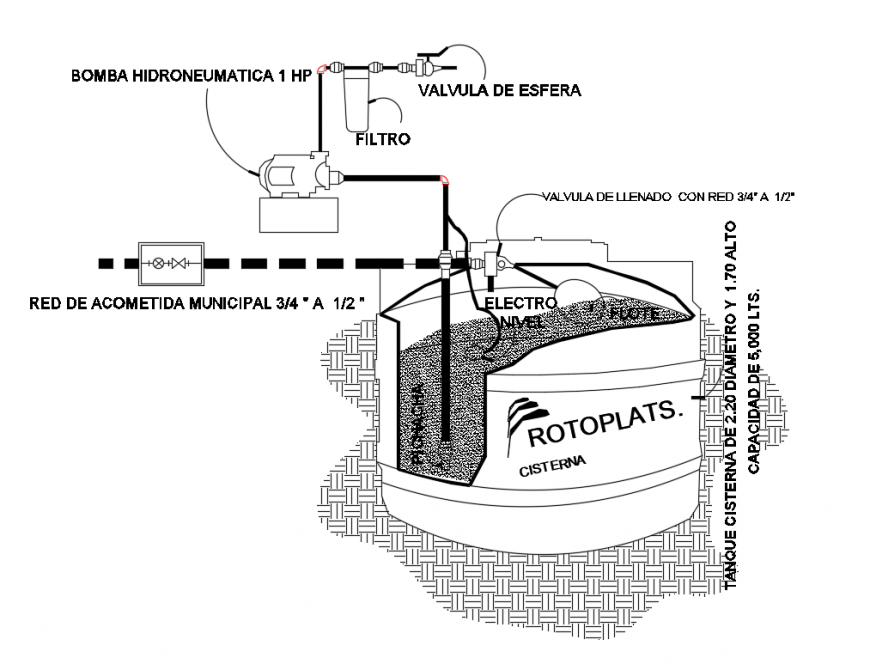

Details of pre-manufactured cistern water tank constructive plumbing details fill valve with red 3/4 "a 1/2", 1 hp hydropneumatic pump, sphere valve, municipal acomplete network 3/4 "to 1/2", electro level, flote, dimensions details, tank elevation, water depth and much more of water tank details.




File Type: DWG File ID: 121533

Uploaded by:


Eiz Luna
New-Zealand
