Wall Structure Detail DWG Section with Plastering Design CAD

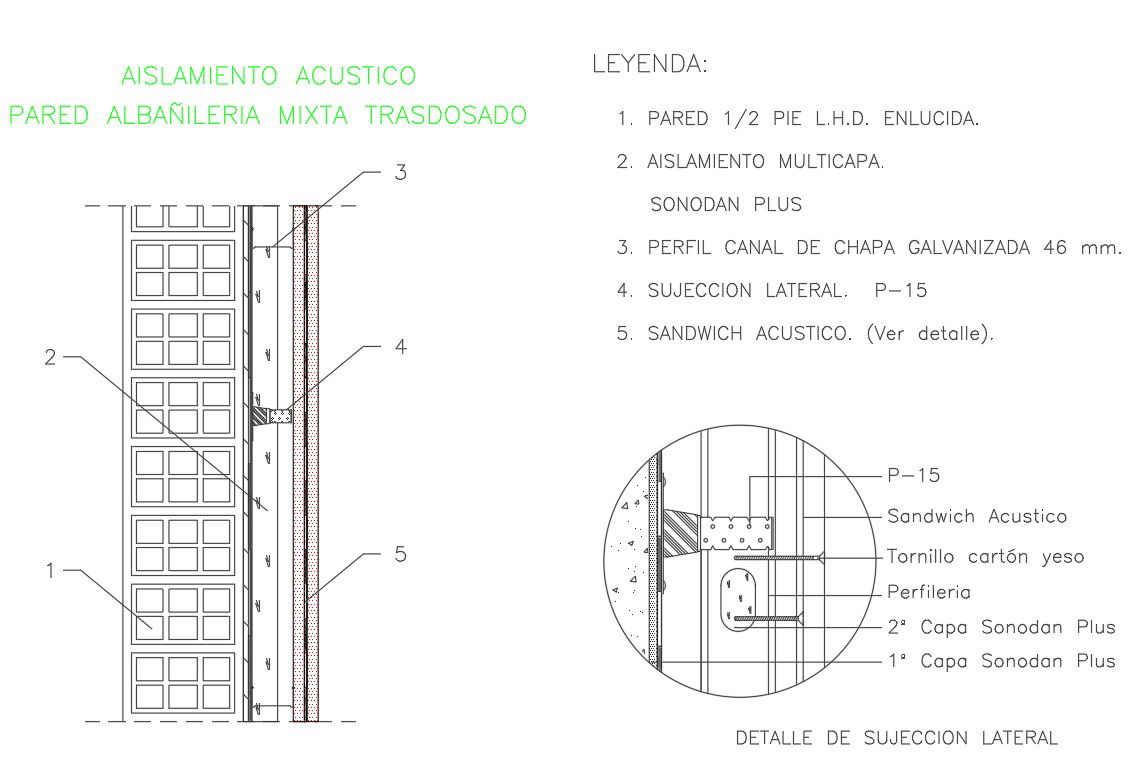

This Wall Structure Detail DWG file presents a precise AutoCAD drawing focused on wall construction and sectional detailing. The drawing includes a 1 and 2-pie wall structure with left-hand side plastering, clearly showing internal and external finishes. The lateral section detail illustrates wall thicknesses typically ranging from 230mm to 300mm, along with plaster layers of approximately 12mm to 20mm on each side. Construction elements such as brick masonry, plaster coats, and alignment references are accurately drafted to support structural clarity and on-site execution. This detail is useful for understanding material buildup, finish coordination, and wall junction behavior in building projects.
