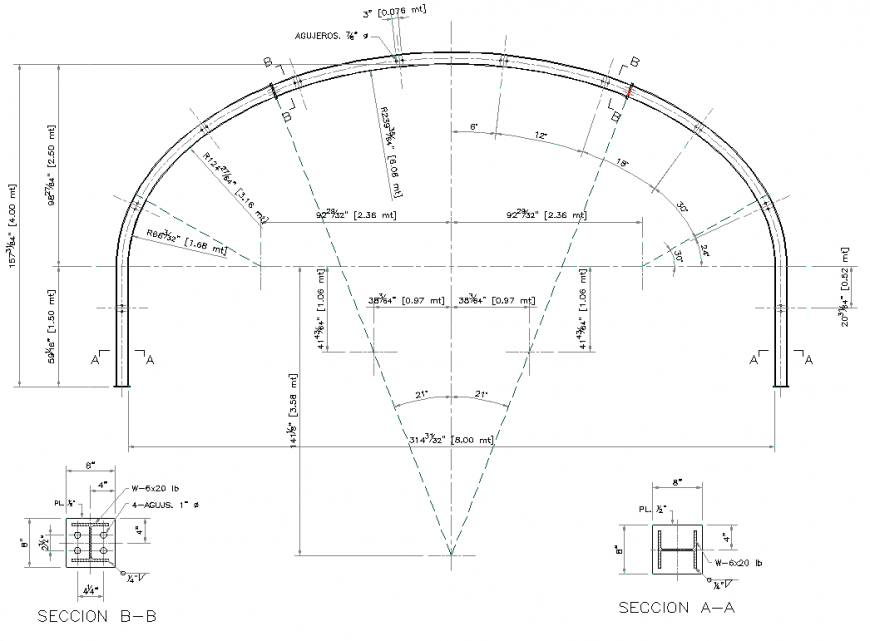

Detail of arc centre plan and section layout file


Description

Detail of arc centre plan and section layout file, section A-A’ detail, section B-B’ detail, section line detail, dimension detail, naming detail, hidden lien detail, hatching detail, reinforcement detail, nut bolt detail, not to scale detail, radius detail, etc.




File Type: DWG File ID: 122352

Uploaded by:


Eiz Luna
New-Zealand
