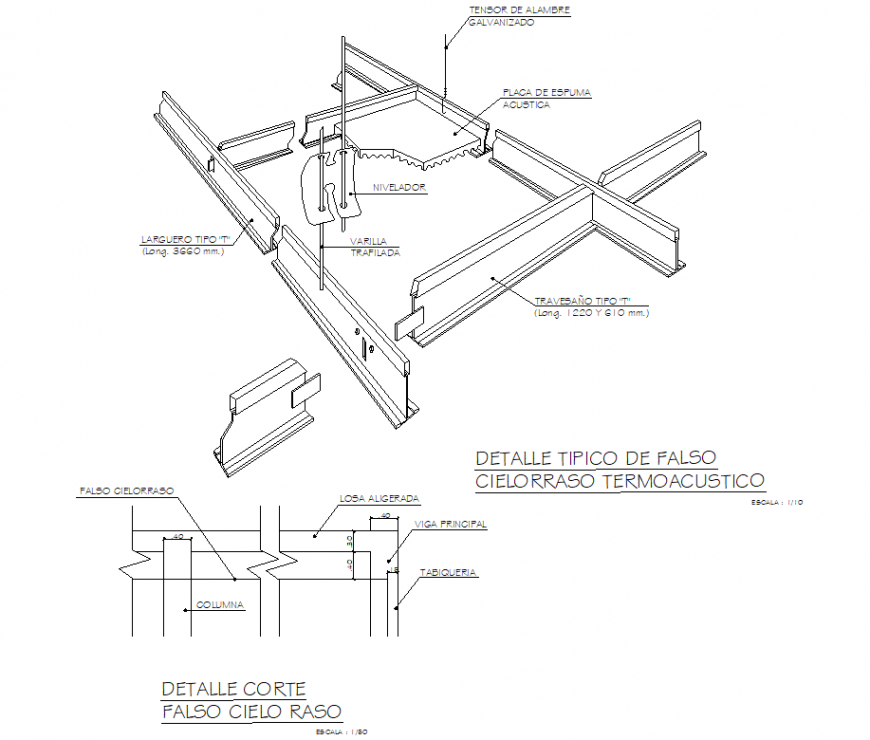

Typical detail false thermoacoustic ceiling section layout file
Description
Typical detail false thermoacoustic ceiling section layout file, isometric view detail, scale 1:10 detail, cut out detail, reinforcement plate detail, nut bolt detail, concrete moprtar detail, steel stick line detail, lock system detail, thickness detail, etc.
File Type:
DWG
File Size:
27 KB
Category::
Construction
Sub Category::
Concrete And Reinforced Concrete Details
type:
Gold
Uploaded by:
Eiz
Luna
