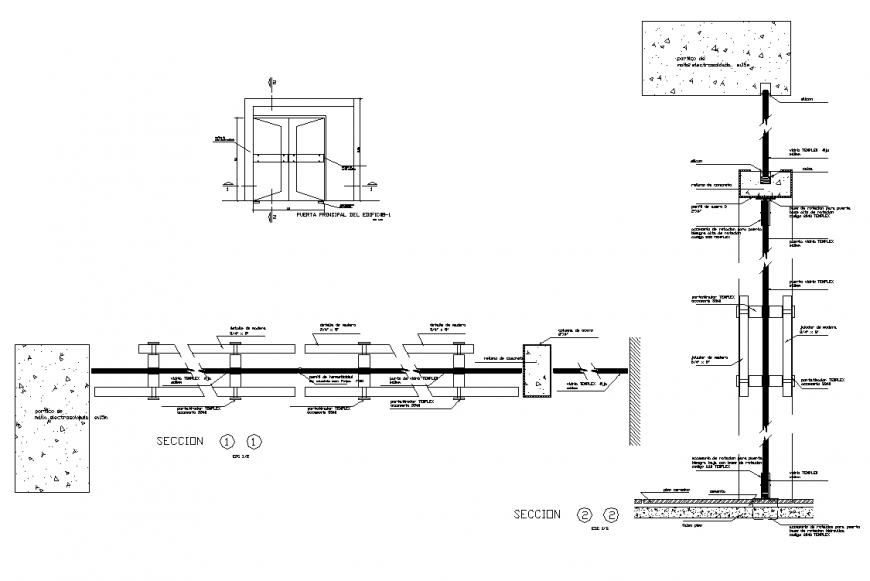

2 panels tempered glass door detail section 2d view layout file


Description

2 pannels tempered glass door detail section 2d view layout file, I-angle section detail, naming detail, dimension detail, section line detail, scale detail, hatching detail, cut out detail, linetel detail,. nut bolt required for joints and connection detail, section 1-1 detail, scetion 2-2 detail, steel bracket detail, plan view detail, etc.



Eiz Luna
New-Zealand
File Type: DWG ID: 122490
