Retaining Wall Basement Structure DWG with Reinforcement Dimensions

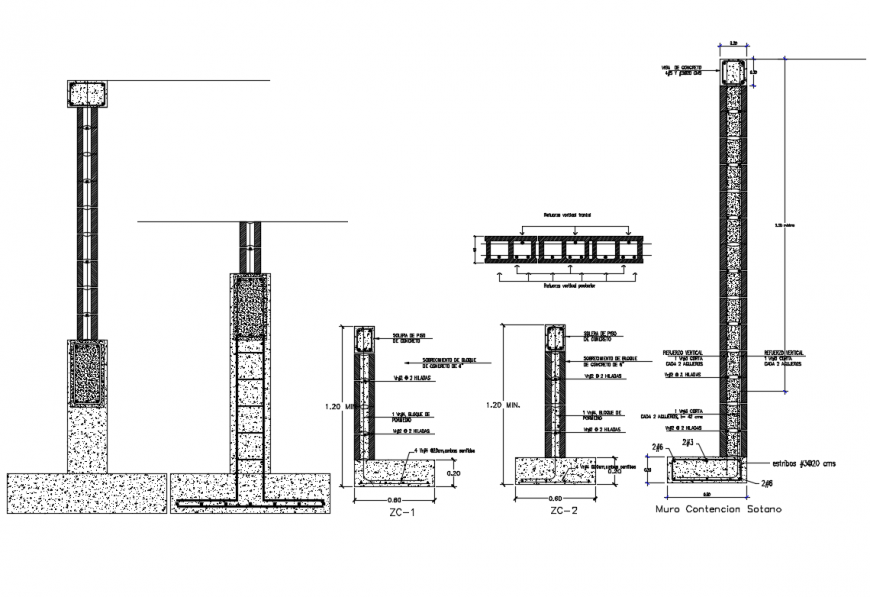

Explore a detailed retaining wall basement structure DWG designed for accurate structural design and underground construction planning. This AutoCAD drawing presents comprehensive details of a retaining wall with basement containment, including sectional views, reinforcement layout, and foundation support system. The drawing illustrates wall thickness typically ranging from 200 mm to 400 mm, base footing width from 800 mm to 1500 mm, and depth depending on soil condition and load requirements. Reinforcement details such as bar diameter, spacing, and anchorage are clearly shown along with drainage layers and backfill arrangement to ensure stability and water resistance. The drawing also includes a basement wall connection, slab integration, and a soil retention system for effective load distribution. This DWG file is highly useful for civil engineers, structural designers, and construction professionals working on basement and retaining wall projects.
