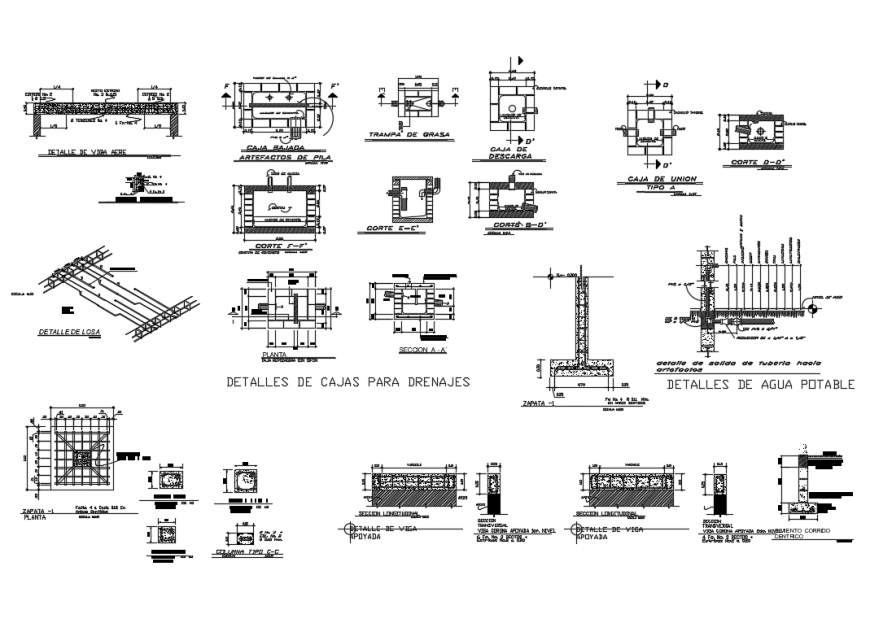

Foundation structure and drainage boxes-plumbing and structure details dwg file

Foundation structure and drainage boxes-plumbing and structure details that includes a detailed view of layer- wall core polystyrene base material thickness of, layer-3 of wall of  "to the base of concrete of thickness, concrete chain, rebar steel rod ", stirrup for chain frame with waterproofing pa, waterproofing, slope formation layer, elastic expansion joint, aluminum joinery stud, angular anchor, aluminum joinery crosspiece, anchoring to allow movement by dilation, anchor screw, veneer, elastic gasket for glass, elastic sealing gasket and much more of structure details.
