Roof Plan CAD Block Design DWG with Joist and Fixing Details

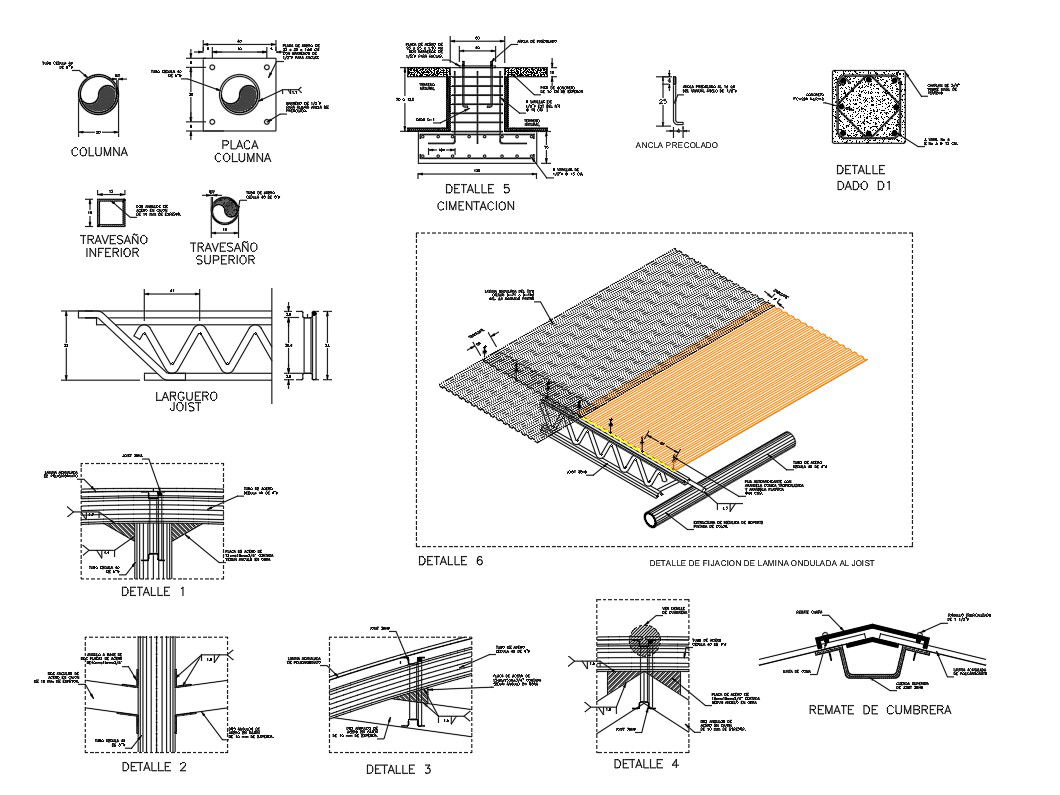

This Roof Plan CAD Block Design DWG file delivers a comprehensive AutoCAD drawing set covering roof planning, structural components, and fixing details. The drawing includes a roof plan layout with corrugated sheet placement, steel joist arrangement, column and base plate details, anchorage, and ridge capping. Typical dimensions are clearly annotated, such as joist spacing around 1200 mm, corrugated sheet overlap of approximately 150 mm, and sheet thickness of 0.50 mm to 0.60 mm. Foundation and column base details show plate sizes close to 300 mm x 300 mm, anchor bolts around 20 mm diameter, and concrete footing depths extending up to 900 mm, ensuring structural clarity and constructability.
