Penthouse Layout Design CAD DWG With Floor Plan And Terrace Zones

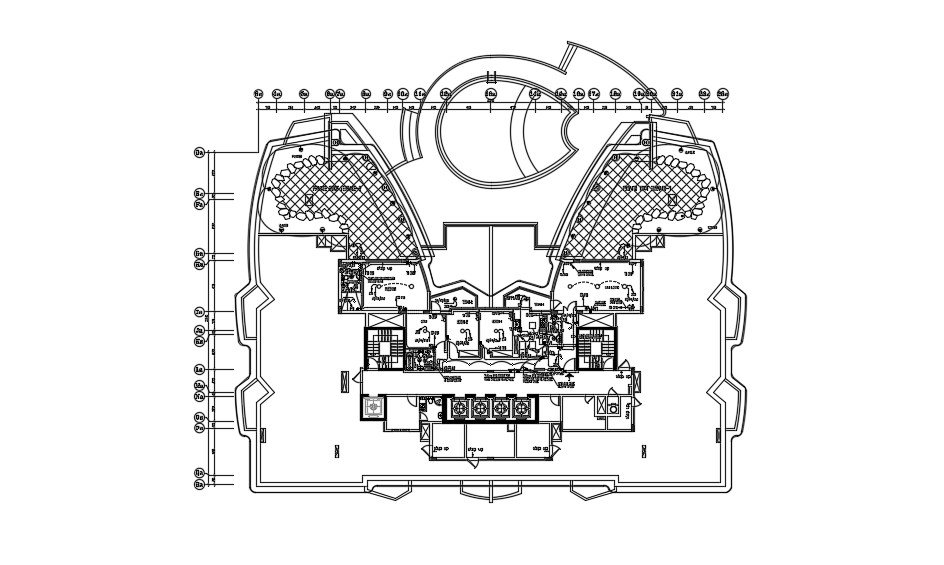

This Penthouse Layout Design CAD DWG file provides a complete and modern residential layout for a luxury penthouse. The drawing includes spacious living areas, bedrooms, a kitchen, bathrooms, a dining area, a terrace, and circulation spaces. Standard measurements are indicated for accurate planning, including the living room 5000 x 4000 mm, the master bedroom 4500 x 3500 mm, the kitchen 3200 x 2500 mm, and the bathrooms around 1800 x 1500 mm. Terrace areas and open spaces are clearly marked, showing access points, seating arrangements, and landscaping features. The plan also includes door and window placements, wall thicknesses, and furniture positioning for precise interior coordination.
