Restaurant Plan Elevation And Section CAD DWG With Seating Layout

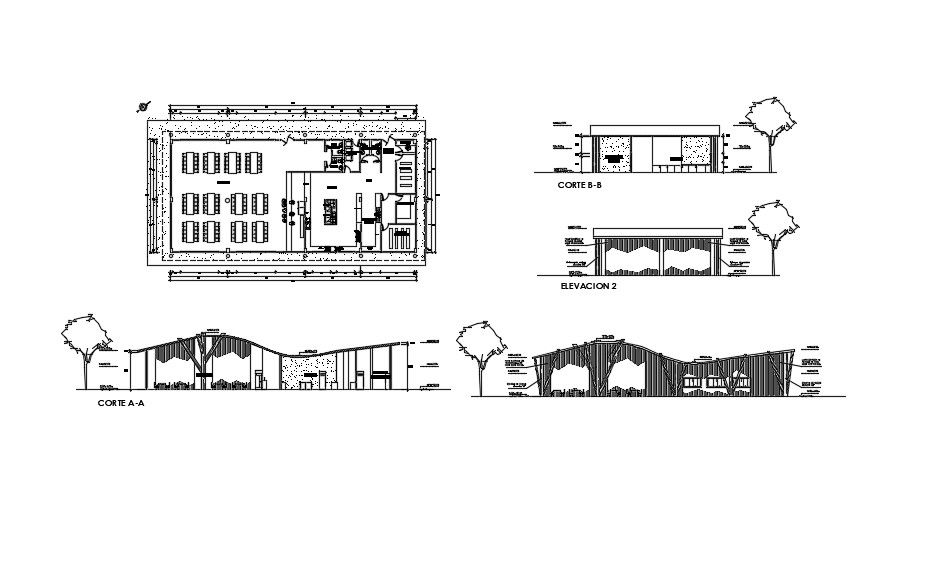

This Restaurant Plan Elevation and Section CAD DWG file provides a complete architectural drawing for designing modern restaurant interiors. The file includes detailed floor plans with seating arrangements, kitchen area, service counters, restrooms, and circulation paths. Standard measurements are indicated, including dining area 9000 x 6000 mm, aisle width 1200 mm, table size 900 x 600 mm, and service counter length 4000 mm. Elevation views show wall finishes, partition heights, and decorative elements, while sectional drawings illustrate floor levels, ceiling heights, and furniture alignment. The CAD drawing is properly scaled, layered, and annotated for professional use in restaurant design projects.
