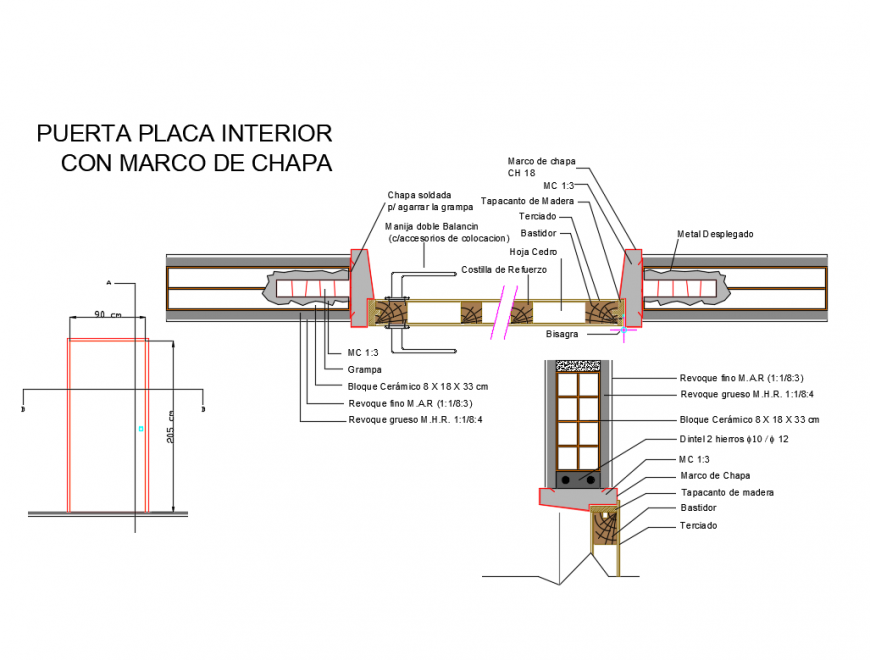

Interior plate door with folded sheet metal frame installation details dwg file


Description

Interior plate door with folded sheet metal frame installation details that includes a detailed view of welded plate for grappling the clamp, double swing handle (with placement accessories), reinforcement rib, expanded metal, ceramic block, ceramic, block, lintel 2 irons, wood cap, frame and much more of door installation details.




File Type: DWG File ID: 123283

Uploaded by:


Eiz Luna
New-Zealand
