Channel Design CAD DWG With Elevation Section And Structural Details

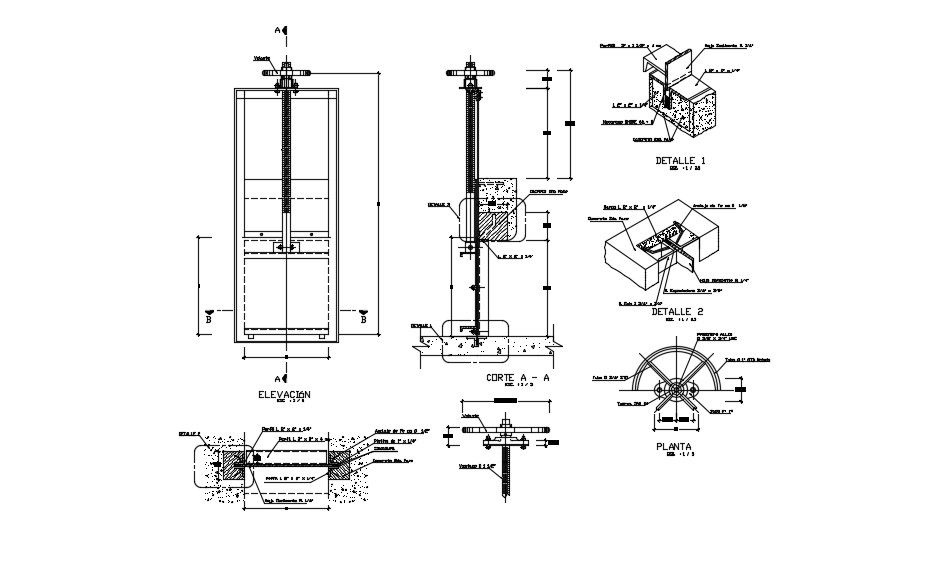

This Channel Design CAD DWG file provides a complete and detailed technical drawing for industrial or construction channel systems. The file includes elevation, sectional views, top plan, and detailed construction components for precise implementation. Standard dimensions are clearly shown, including channel width 600 mm, depth 800 mm, base thickness 200 mm, and reinforcement placements. Detailed sectional drawings illustrate foundation alignment, wall thicknesses, and connection points for supporting structures. All elements are properly scaled, layered, and annotated, making the drawing suitable for professional engineering, architectural, and construction use.
