Sliding Window Design CAD DWG With Frame Sections And Dimensions

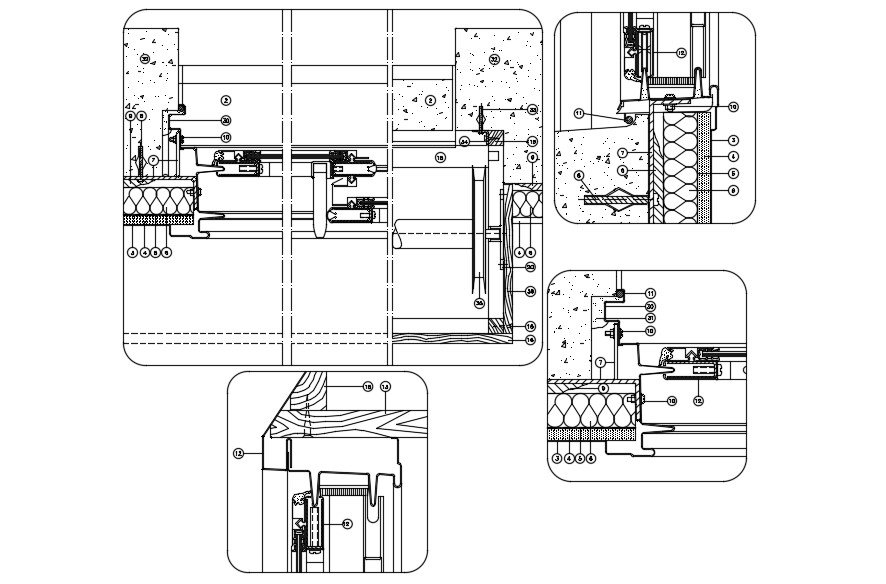

This Sliding Window Design CAD DWG file provides a detailed technical drawing of a modern sliding window suitable for residential, commercial, or office buildings. The drawing includes window frames, sliding panels, sill and lintel details, and cross-sectional views. Standard measurements are indicated, such as frame width 1200 mm, frame height 1500 mm, glass thickness 10 mm, and panel overlap 50 mm. Detailed sections show construction layers, insulation placement, and sealing details, ensuring accuracy for installation and fabrication. The CAD file is fully layered, scaled, and annotated for professional use in architectural and construction projects.
