Composite Slab Structure Section with Steel Beam Dimension Details

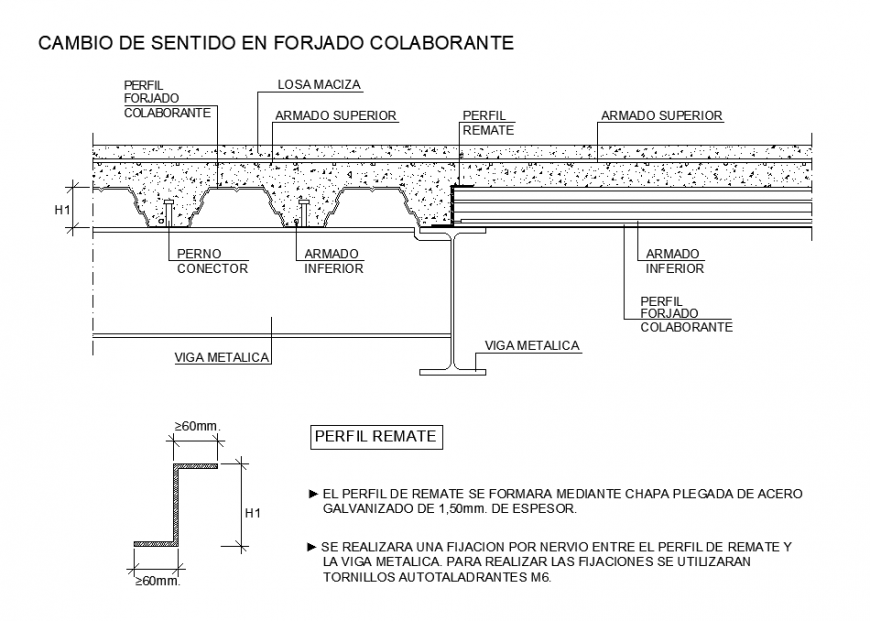

This AutoCAD drawing presents a composite slab structure section with detailed steel beam and concrete slab configuration, including accurate dimension specifications. The drawing shows a metal deck profile, an RCC slab layer, and reinforcement detailing with upper and lower arm positioning. It includes steel beam support with I-section, flange plate, and web plate connections, along with pin connector placement. The section clearly illustrates slab thickness, profile height, and joint connections for structural stability using AutoCAD files and cad files.
