Bridge Structure Section CAD Block Drawing with Scale 1 100.

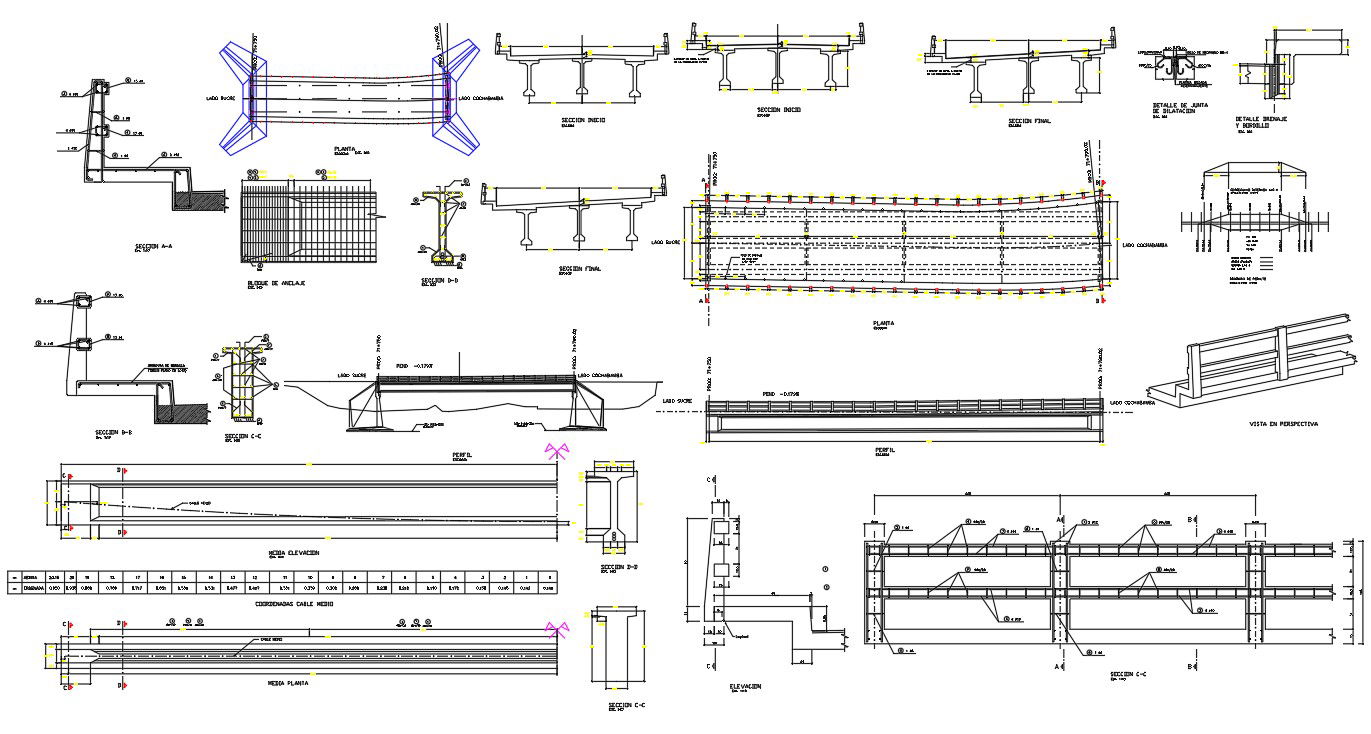

This AutoCAD DWG file provides a complete bridge structure section CAD block drawing prepared at standard scale 1:100 with accurate structural and construction measurements. The drawing includes longitudinal profiles, cross sections, deck slab layouts, girder arrangements, pier and abutment details, and bearing positions for stable load transfer. It also presents expansion joint configurations, reinforcement layouts, anchorage blocks, and parapet wall details for safe bridge performance. The plan clearly shows deck width, slab thickness, girder spacing, support heights, and foundation depths, making it suitable for professional bridge design, analysis, and execution projects. All dimensions are properly labeled for precise interpretation and implementation on site.
