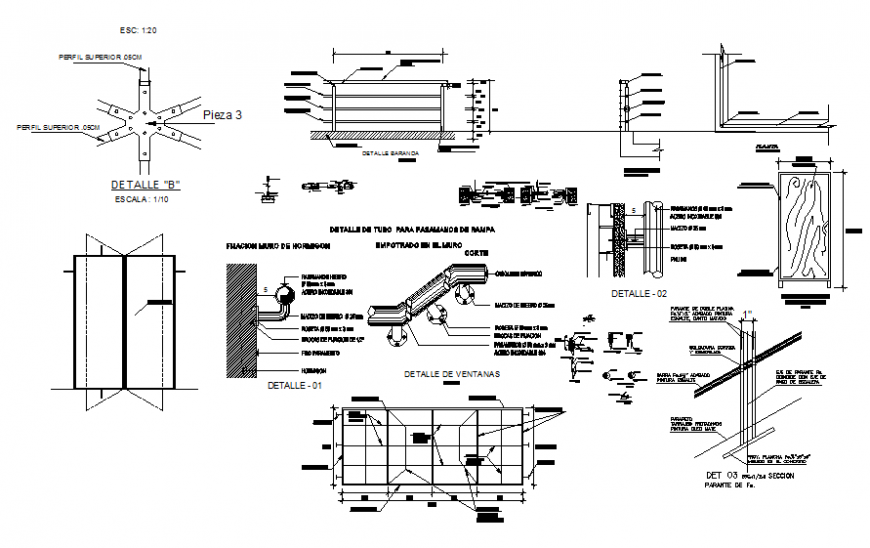

Staircase and several constructive details of office building dwg file


Description

Staircase and several constructive details of office building that includes a detailed view of foundation plan, structure details, floor construction, beam construction, floor wise structure and constructive details with memory of materials, footings details, staircase construction and sectional details, steps details, dimensions, column view, beam construction, covers closure type  and , soil  burried wall closure type  and , exterior solera, holes, interior partition, granite veneer of the country with steel supports and much more of building construction details



Eiz Luna
New-Zealand
File Type: DWG ID: 124384
