Elevation, section, floor plan and auto-cad details of corporate building dwg file


Description

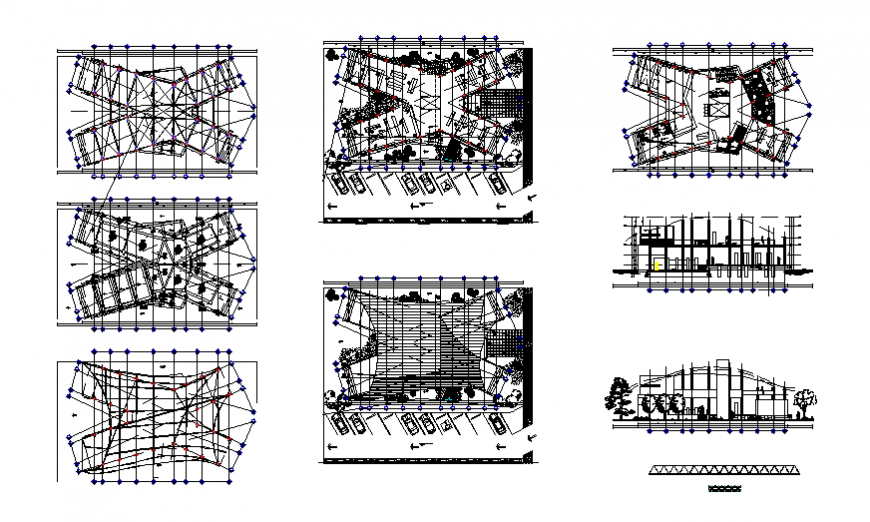

Elevation, section, floor plan and auto-cad details of corporate building that includes a detailed view of flooring view, doors and windows view, staircase sectional details, balcony view, wall sections and dimensions details with reception area, waiting area,  cabin, bottom false ceiling, computer lab, bottom of grid ceiling, counselling room and library, conference room, manager cabin, meeting room, cleaning department, departmental office, smoking area, head offices, accountant rooms, pantry, kitchen, dining area, server room, meeting room, pantry and much more of office building project.




File Type: DWG File ID: 124486
