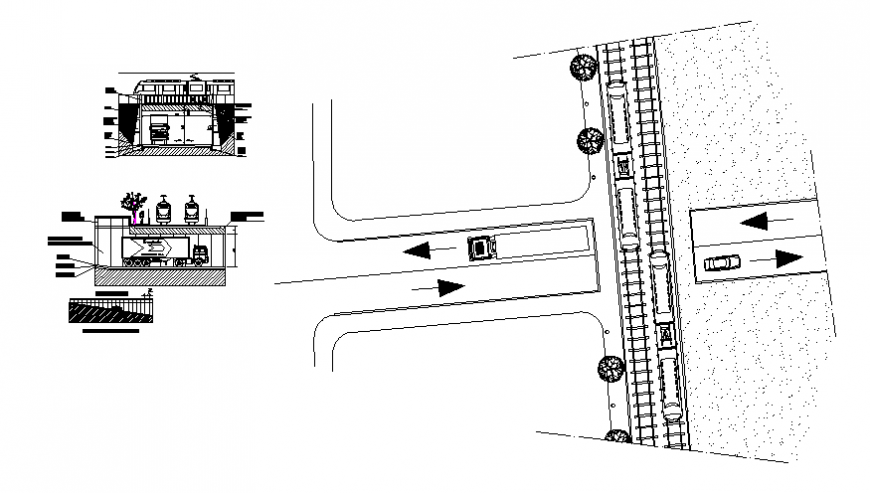

Rail road crossing with highway transverse section and constructive details dwg file

Rail road crossing with highway transverse section and constructive details that includes a detailed view of sectional details, vehicle blocks, dimesions details, Prefabricated railings, ground, prestressed precast, concrete panel, drainage tube, mass concrete slab of the pedestrian crossing, concrete slab on railway mass, gravel layer, filtering rain collection tube and much more of road details.
