Bank Blueprint Design DWG File With Floor Plan Section And Elevation

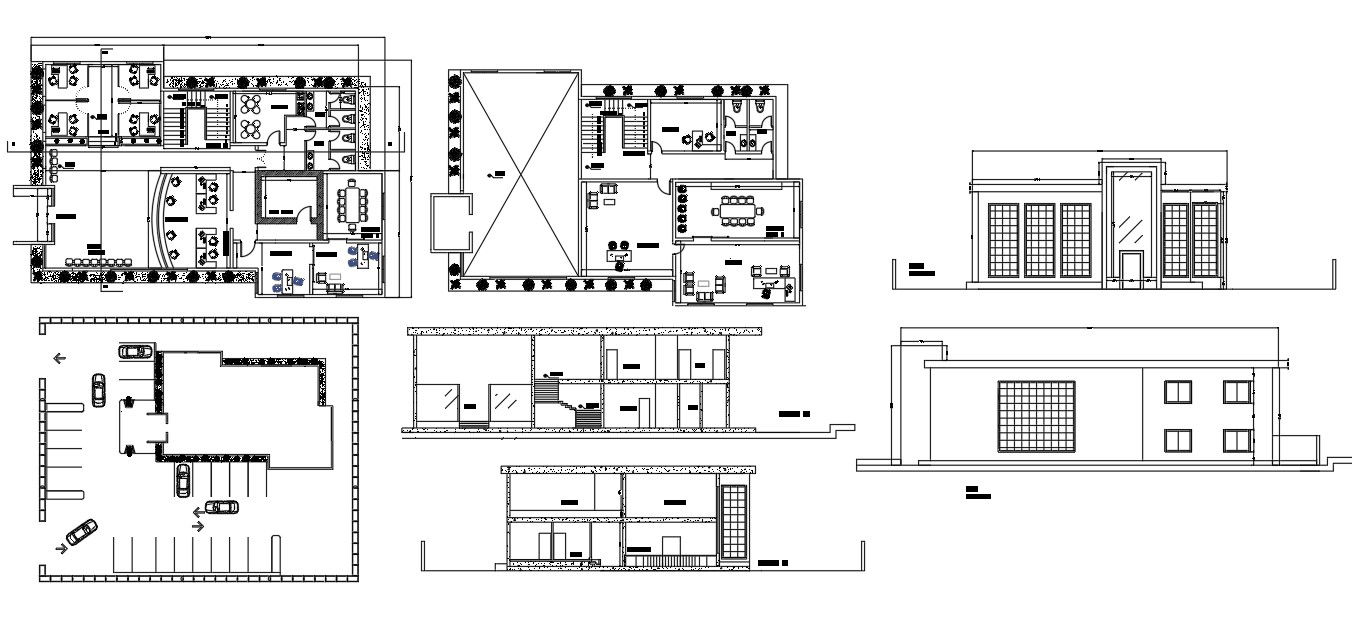

This Bank Blueprint Design DWG File provides a complete architectural and interior planning solution for commercial banking buildings. The drawing set includes detailed ground floor and upper floor plans, sectional views A A and B B front and side elevations, and internal layout arrangements prepared at 1 is to 100, and 1 is to 50 scale. It covers customer service counters, cashier cabins, manager's room, staff workstations, meeting areas, waiting zones, staircases,s and washrooms. Important technical measurements such as 3000mm floor to floor height,t 1200mm corridor width, 900mm door openings, 600mm counter depth, and 150mm slab thickness are clearly marked. Furniture placements,t electrical layouts, security zones, and service ducts are also included for accurate site execution. All drawings are organized with standard AutoCAD layers for easy modification.
